Why Air Quality Control Is Critical for Natural Resources Operations Natural Resources Industry Applications Master Pneumatic Supports Critical Regulatory Standards and Compliance Master Pneumatics’ Featured Natural Resources Solutions Why Natural Resources Professionals Choose Master Pneumatic Getting Started FAQs

Why Air Quality Control Is Critical for Natural Resources Operations

Natural resource extraction represents one of the most demanding applications for pneumatic systems. Equipment operates in environments filled with mineral dust, moisture from underground water sources, temperature extremes, and continuous high-volume airflow. Contaminated or inconsistently regulated compressed air creates cascading failures:

  • Particulate Contamination sabotages blasting precision and drilling accuracy. Dust and mineral particles block nozzles, creating uneven blasting patterns that damage equipment and waste expensive abrasive material. In drilling operations, particulate-laden air clogs pneumatic motors, stalls valve actuators, and forces unplanned shutdowns costing thousands per hour.
  • Moisture and Water Vapor are the silent killers in natural resources. Water freezes in pneumatic lines during cold-weather operations, blocking air supply to critical control systems. Moisture promotes rust formation inside compressor tanks and air lines, creating corrosion that spreads throughout pneumatic systems. Water enables microbial growth in storage tanks, producing sediment that clogs precision control components. In mining operations, moisture in dust control pneumatic systems can trigger equipment failures that leave workers exposed to hazardous silica dust.
  • Oil Aerosol Contamination causes sluggish valve response, unreliable actuator function, and accelerated wear on pneumatic motors. Over-lubricated air lines create varnish buildup in cylinders, reducing power and increasing maintenance frequency. Under-lubricated systems suffer accelerated bearing wear and component seizure, forcing expensive repairs during critical operations.
  • Pressure Instability results in inconsistent blasting patterns, unpredictable drilling performance, and uncontrolled cargo handling. Natural resources operations must maintain precise pressure control across complex pneumatic systems, often with long hose runs from central compressors to dispersed work areas.

Master Pneumatics’ integrated approach to air preparation—combining multi-stage filtration, precision regulation, and controlled lubrication—addresses each of these challenges, delivering the clean, dry, stable, and optimally lubricated compressed air that natural resources operations require.

Natural Resources Industry Applications Master Pneumatic Supports

  • Underground and Surface Mining Operations

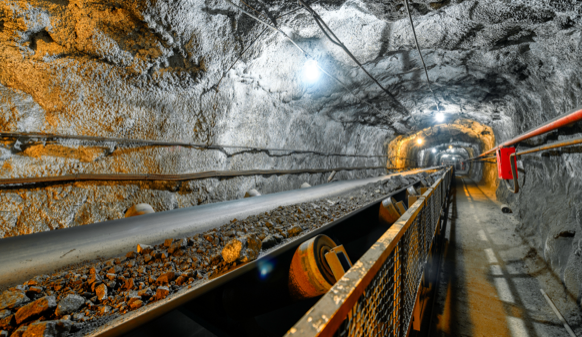

    Mining represents one of the most demanding pneumatic environments. Underground operations involve continuous exposure to mineral dust, groundwater seepage, temperature fluctuations, and high-volume air consumption for pneumatic drilling, charging, and ventilation systems.

    MSHA (Mine Safety and Health Administration) Compliance is mandatory. The 2024 revised MSHA silica dust rule (30 CFR Part 60) cuts permissible exposure limits (PELs) in half:

    • Respirable crystalline silica (quartz) PEL: 50 μg/m³ (down from 100 μg/m³)
    • Action Level: 25 μg/m³ (at which mines must implement dust controls)
    • Coal dust PEL: 100 μg/m³ for surface and underground mines

    These standards require continuous monitoring, engineering controls, and documentation. Mines failing to meet PELs face operational shutdowns, substantial MSHA fines, and liability for worker health consequences.

    Master Pneumatic supports MSHA compliance through:

    • Dust control system optimization: High-capacity filters and regulators for pneumatic dust suppression systems that must operate continuously to keep airborne dust below action levels
    • High-efficiency particulate filters: Coalescing elements (0.3 and 0.01 micron) that remove mineral dust before it contaminates pneumatic control systems
    • Moisture control: Desiccant dryers prevent water condensation that can freeze pneumatic lines in winter mining operations or underground, where temperatures remain constant
    • Reliable pressure regulation: Stable air delivery for pneumatic tools, drilling equipment, and control systems that must operate consistently regardless of ambient conditions

  • Abrasive Blasting Operations (Sandblasting and Media Blasting)

    Abrasive blasting removes surface coatings, cleans steel structures, restores equipment, and prepares surfaces for painting or coating. From heavy-duty shipyard blasting to precision cleaning of delicate automotive parts, blasting operations depend entirely on compressed air quality and pressure stability.

    OSHA Standards Governing Blasting include:

    • 29 CFR 1910.94(a): Ventilation and dust control requirements for abrasive blasting. Exhaust ventilation systems must remove dust, and air contaminants (including respirable crystalline silica from sand) must remain below permissible exposure limits
    • 29 CFR 1910.1053: Respirable crystalline silica standard requiring air monitoring, engineering controls, and worker respiratory protection
    • 29 CFR 1910.95: Noise exposure limits (90 dBA over 8-hour shift)—blasting operations often exceed this, requiring controls

    Why Air Quality Matters in Blasting:

    • Nozzle performance: Contaminated air clogs nozzles, creating uneven blast patterns that waste abrasive material and require re-blasting
    • Pressure consistency: Fluctuating air pressure produces an inconsistent surface finish, wasting material and requiring rework
    • Equipment longevity: Oil-contaminated air creates varnish in blast equipment, reducing service life 50-75%
    • Worker safety: Clean, properly regulated air ensures pneumatic equipment functions predictably, reducing accidents and ergonomic stress

    Master Pneumatics’ blasting solutions include:

    • 5-micron general-purpose filters with automatic float drains that remove gross water and mineral dust before it reaches nozzles
    • 0.3-micron coalescing filters that remove oil aerosol and water vapor, ensuring the ultra-clean air blasting equipment demands
    • Precision regulators maintaining constant blast pressure regardless of compressor inlet pressure fluctuations or flow demand changes
    • Single-point lubricators delivering controlled oil mist that protects blast equipment without over-lubrication
    • Lockout valves meeting OSHA 29 CFR 1910.147 requirements, allowing safe servicing of blasting equipment during maintenance

  • Dry-Ice Blasting Systems

    Dry-ice blasting provides a non-abrasive alternative for cleaning delicate surfaces, removing contaminants without damaging underlying materials. Dry-ice systems are increasingly used in food processing, electronics manufacturing, automotive restoration, and precision equipment cleaning.

    Unlike abrasive blasting, dry-ice systems require ultra-dry, contaminant-free compressed air. Water vapor or oil aerosol interferes with dry-ice formation and sublimation, reducing cleaning effectiveness. Particulate contamination can damage precision orifices in dry-ice generation equipment.

    Master Pneumatic dry-ice system solutions include:

    • Desiccant dryers (clay, molecular sieve, or activated carbon) remove water vapor that would otherwise condense in dry-ice equipment
    • 0.01-micron coalescing filters providing ISO 8573 Class 1 air quality—the ultra-clean air dry-ice systems require
    • High-precision regulators maintaining the specific pressure (typically 50-150 PSI depending on dry-ice generator design) that dry-ice cleaning requires
    • Moisture monitoring systems with alarms that alert operators when drying efficiency drops, preventing dry-ice system failures

  • Drilling and Well Operations

    Drilling—whether for minerals, water, or geothermal resources—depends on pneumatic tools and control systems operating flawlessly in extreme conditions. Pneumatic drills must deliver consistent torque and power despite temperature swings, dust-laden environments, and continuous duty cycles.

    Critical Drilling Requirements:

    • Consistent tool performance: Pneumatic drills produce consistent drilling speed and accuracy across full shift operations
    • Moisture control: Preventing water condensation that freezes pneumatic lines in cold-weather drilling
    • Particulate removal: Drilling-generated dust cannot enter the tool air supply, as it causes valve sticking and motor seizure
    • Pressure stability: Drilling control systems require steady pressure to maintain precise positioning and feed rates

    Master Pneumatic drilling solutions include:

    • Field-rated filtration: Portable filter systems designed for drilling site conditions—rugged construction, automatic drains, minimal maintenance
    • Desiccant dryers: Essential for arctic or high-altitude drilling, where temperature drops cause rapid moisture condensation
    • Modular FRL systems: Portable filter-regulator-lubricator combinations that mount directly on portable compressors
    • Tool-specific lubricators: Single-point lubrication systems that optimize pneumatic drill performance without over-oiling

  • Dust Control Systems and Environmental Compliance

    Modern mining and drilling operations face increasingly strict environmental regulations requiring dust suppression. Pneumatic dust control systems—using compressed air to power water sprays, foam systems, and air curtains—are critical for:

    • Controlling fugitive dust that violates MSHA PELs and jeopardizes worker health
    • Meeting EPA and state air quality regulations
    • Protecting surrounding communities from mineral dust migration
    • Enabling continuous operation when atmospheric dust levels would otherwise force shutdowns

    Dust control systems require clean, dry, stable air in volumes of hundreds of SCFM. Contaminated air clogs spray nozzles, creates uneven water distribution, and requires system shutdowns for cleaning.

    Master Pneumatic dust control solutions include:

    • High-capacity filters and regulators sized for dust suppression flow requirements (typically 500-2000 SCFM)
    • Automatic drain systems that continuously purge accumulated moisture—critical for 24/7 mining operations
    • Stable pressure regulation ensuring consistent spray patterns across multi-nozzle systems
    • Field-serviceable components enabling maintenance without system depressurization

  • Portable Compressor Systems and Mobile Equipment

    Natural resources operations frequently employ portable compressors for remote drilling sites, emergency backup, and specialized applications. Portable systems face unique challenges:

    • Temperature extremes (desert heat to arctic cold) that strain air preparation components
    • Saltwater or corrosive environments (mining, salt operations) require corrosion-resistant materials
    • Minimal maintenance access in field locations
    • Continuous duty cycles with limited shutdown periods for service

    Master Pneumatic portable system solutions include:

    • Corrosion-resistant materials: Stainless steel components for saltwater and chemical-rich environments
    • Modular configurations: Compact filter-regulator-lubricator assemblies mounting directly on portable compressors
    • Integral drain systems: Automatic drains requiring no manual operation, critical for unattended portable systems
    • Quick-disconnect couplings: Facilitating rapid equipment changes without system depressurization
    • Shatterguard bowl protection: Protecting filter bowls from impact damage in rugged field conditions

Critical Regulatory Standards and Compliance

Natural resource operations must meet stringent regulatory and industry standards. Master Pneumatics’ products are designed to support compliance with:

MSHA Logo

MSHA Respirable Crystalline Silica Standards (30 CFR Part 60)

The 2024 revised MSHA silica dust rule represents the most significant change in mining health standards in decades:

For Metal/Nonmetal Mines:

  1. Permissible Exposure Limit (PEL): 50 μg/m³ for respirable crystalline silica (quartz, cristobalite, or tridymite)
  2. Action Level (AL): 25 μg/m³ (miners must implement dust controls when exposure reaches this level)
  3. Action Level Alert: Above 50% of action level (continuous monitoring required)

For Coal Mines:

  1. Permissible Exposure Limit (PEL): 100 μg/m³ for respirable coal mine dust
  2. Action Level (AL): 50 μg/m³
  3. New: Operator must measure dust levels every 7 days to 3 months and achieve compliance within 6-month monitoring intervals

Engineering Controls Required: MSHA requires that operators primarily use engineering controls (rather than respirators) to achieve compliance. These include ventilation systems, dust suppression, and air filtration. Master Pneumatic supports these controls by providing:

  1. High-efficiency filters prevent contaminated air from entering pneumatic dust control systems
  2. Stable pressure regulators ensure consistent dust suppression spray patterns
  3. Reliable valve operation in dust control systems that must function continuously
OSHA Logo

OSHA Standards for Abrasive Blasting and Dust Control

Surface mining, processing facilities, and maintenance operations fall under rigorous OSHA oversight:

  • OSHA 29 CFR 1910.94(a) (Abrasive blasting): Requires continuous engineering controls to keep respirable dust within permissible exposure limits. Contaminated compressed air that causes irregular blasting operations directly compromises these controls.
  • OSHA 29 CFR 1910.1053 (Silica standard for general industry): Establishes the 50 μg/m³ PEL for respirable silica and requires systematic monitoring and engineered control environments.

Master Pneumatics’ multi-stage filtration solutions ensure the pneumatic reliability required to maintain OSHA-mandated ventilation and dust suppression systems.

ISO Logo

ISO 8573-1 Compressed Air Quality Standard

Natural resources operations, despite harsh environments, often require highly specified air quality—particularly for precision instruments, dry-ice blasting, and breathing air systems.

  • ISO 8573-1 Class 1 (Particulate): Requires removal of 99.99% of particles >0.01 micron. (Achieved via Master Pneumatic coalescing filters)
  • ISO 8573-1 Class 2/3 (Water): Requires pressure dew points of -40°F to -4°F to prevent freezing in mine supply lines. (Achieved via desiccant dryers)
  • ISO 8573-1 Class 1 (Oil): Requires oil aerosol content <0.01 mg/m³. (Achieved via precision coalescing filters)
OSHA Logo

OSHA Lockout/Tagout Requirements

OSHA 29 CFR 1910.147 (Lockout/Tagout) is critical in natural resource operations, where uncontrolled energy release can be catastrophic.

  • Requirement: Pneumatic machinery must have a means to isolate the energy source (compressed air) and bleed residual pressure before maintenance.
  • The Master Pneumatic Solution: Our OSHA-compliant Lockout Valves provide a visible, physical barrier to air supply. When locked in the closed position, they exhaust downstream pressure, ensuring equipment cannot actuate during maintenance—a critical safety mandate for mining and drilling operations.

Why Natural Resources Professionals Choose Master Pneumatic

75+ Years of Natural Resources Industry Leadership

Master Pneumatic has served mining, drilling, and blasting operations since the 1940s, building deep expertise in:

  1. Underground and surface mining equipment requirements
  2. Drilling system reliability in extreme environments
  3. Abrasive and dry-ice blasting optimization
  4. Regulatory compliance across federal, state, and local jurisdictions

This heritage provides natural resources professionals with proven solutions addressing real-world challenges, not theoretical applications.

Engineered Reliability for Extreme Environments

Natural resources applications demand equipment that functions in the harshest conditions:

  1. Extreme temperatures (Arctic to desert)
  2. High dust and moisture environments
  3. Continuous 24/7 duty cycles
  4. Remote locations with minimal maintenance access

Master Pneumatic products are engineered for this demanding environment:

  1. Pressure-tested assemblies ensuring zero leaks before shipment
  2. Material specifications optimized for natural resources, temperature and environmental extremes
  3. Extensive field validation with major mining, drilling, and blasting operators providing continuous improvement feedback
  4. Technical documentation supporting regulatory compliance verification

Comprehensive Support for Operations and Maintenance

Master Pneumatic supports natural resources professionals through:

  1. Technical training programs enabling maintenance teams to properly install, operate, and maintain systems
  2. Equipment assessment services identifying air quality issues before they cause failures or regulatory violations
  3. MSHA and OSHA compliance support providing documentation packages for regulatory audits
  4. Preventive maintenance guidance reducing unplanned downtime in remote locations
  5. Emergency support providing same-day technical assistance for critical failures

Natural resources professionals benefit from partnering with a manufacturer who understands mining, drilling, and blasting operations and provides continuous support throughout the equipment lifecycle.

Getting Started With Master Pneumatic Natural Resources Solutions

Mining managers, blasting contractors, drilling supervisors, and procurement professionals can begin addressing air quality challenges immediately:

  1. Schedule a System Assessment: Master Pneumatic application engineers will evaluate your current air preparation systems, identify contamination risks, and recommend improvements addressing MSHA or OSHA requirements. Many natural resources operations discover that modest air quality upgrades enable regulatory compliance while reducing maintenance costs.
  2. Verify Regulatory Compliance: Whether your operations must meet MSHA silica dust standards, OSHA blasting ventilation requirements, or ISO 8573 air quality specifications, Master Pneumatic’s specialists can verify compliance and recommend solutions.
  3. Implement Preventive Filtration: Many natural resources operations can reduce maintenance costs 40-60% while improving equipment reliability by upgrading from reactive component replacement to preventive air filtration. Our specialists will calculate potential savings for your specific operation.
  4. Optimize Lubrication: Switching to precision lubrication systems often extends equipment life 2-3x while reducing maintenance intervals and environmental impact.
  5. Standardize Across Your Operations: Master Pneumatic can develop standardized FRL specifications for your equipment fleet, simplifying maintenance, reducing spare parts inventory, and improving consistency.

Frequently Asked Questions About Natural Resources Pneumatic Systems

  • Q: What is the new MSHA silica dust PEL, and how does it affect my mining operation?

    A: Effective 2024-2026, MSHA cut the respirable crystalline silica PEL in half to 50 μg/m³ (from 100 μg/m³) for metal/nonmetal mines and established an Action Level of 25 μg/m³. This means at 25 μg/m³, mine operators must implement engineering controls. Compliance requires continuous air quality monitoring, engineering controls (ventilation, dust suppression, air filtration), and worker health surveillance. Master Pneumatics’ air preparation systems support dust suppression equipment reliability and air quality monitoring by maintaining consistent pneumatic system performance.

  • Q: Why is dry air so critical for drilling operations in cold climates?

    A: Water in compressed air freezes at high altitudes and in cold weather, creating ice blockages that completely shut off air supply to pneumatic drills and control systems. In arctic drilling operations, moisture condensation can occur within minutes of compressor discharge. Desiccant dryers remove water vapor before it condenses, preventing freeze-ups that can halt operations for days while equipment thaws. A single prevention-focused drying system costing a few thousand dollars eliminates the risk of losing millions in lost drilling time.

  • Q: What is ISO 8573 Class 2 air quality, and why does my blasting operation require it?

    A: ISO 8573-1 defines air quality based on maximum allowable contaminant levels. Class 2 allows particles down to 4 microns, dew points of -40°C or better, and oil content below 0.1 mg/m³. Blasting operations require Class 2 because: (1) Larger particles clog precision nozzles, creating uneven blast patterns and waste; (2) Water causes oil film buildup that sluggishes blasting equipment; (3) Oil aerosol creates varnish that reduces equipment life. Master Pneumatics’ multi-stage systems reliably deliver Class 2, often Class 1 when required.

  • Q: How does OSHA's lockout/tagout requirement affect blasting operations?

    A: OSHA 29 CFR 1910.147 requires that all pneumatic equipment servicing include energy isolation (lockout valves) that can be secured in the closed position with padlocks. This prevents accidental startup of blasting equipment during maintenance, protecting technician safety. When locked closed, the valve must also provide an exhaust port to safely vent downstream pressure. Master Pneumatics’ lockout valve solutions meet this requirement, and we provide OSHA compliance documentation supporting your safety program.

  • Q: Can controlled lubrication really extend pneumatic drill service life 2-3x?

    A: Yes, field testing confirms it. Traditional mist lubricators deliver excess oil that creates varnish and contamination buildup inside pneumatic motors and cylinders, reducing their service life to 3-5 years. Serv-Oil precision injection delivers the exact oil amount that lubricating surfaces require, without excess. Drills lubricated this way maintain original torque and reliability for 8-12 years. The difference is dramatic—controlled lubrication prevents the varnish accumulation that causes traditional drills to lose power and fail prematurely.

  • Q: What maintenance is required for Master Pneumatic FRL systems in remote mining locations?

    A: Master Pneumatic systems are designed for minimal maintenance in remote locations. Automatic float drains purge accumulated water without manual intervention—critical for 24/7 operations. Filter elements typically last 6-12 months in mining environments. Lubricators require annual inspection. If components fail, Master Pneumatic provides modular designs enabling field technicians to replace elements without system depressurization. Many mining operations carry spare filter bowls and elements on-site, enabling repairs without waiting for shipments.

  • Q: How do Master Pneumatic dust control systems help mining operations achieve MSHA compliance?

    A: Master Pneumatic provides clean, dry, stable air to pneumatic dust suppression systems, which are critical MSHA-required engineering controls. Without proper air preparation, dust control nozzles clog, spray patterns become uneven, and systems require frequent shutdowns—exactly when miners are exposed to maximum dust concentration. Master Pneumatic systems maintain consistent spray patterns and system uptime, enabling mines to suppress dust continuously and reliably achieve PEL compliance during MSHA monitoring.

Contact Master Pneumatic for Your Natural Resources Air Preparation Needs

Natural resources professionals rely on Master Pneumatic for solutions addressing the complete spectrum of pneumatic system challenges—from regulatory compliance and safety to efficiency optimization and cost reduction.

Whether you're responsible for underground or surface mining operations, abrasive or dry-ice blasting projects, drilling in extreme environments, or dust suppression systems, Master Pneumatics’ expertise and proven solutions can help you achieve cleaner air, safer operations, extended equipment life, and regulatory confidence.

Contact us to discuss your specific needs and discover how clean, properly regulated, and optimally lubricated compressed air can transform your mining, drilling, and blasting operations.

Master Pneumatic: The Trusted Name in Natural Resources Air Preparation Solutions

75+ Years of Engineering Excellence | ISO 8573 Certified | MSHA & OSHA Compliant | Field-Proven Reliability in the Harshest Environments

Contact Master Pneumatic

Preferred Method of Contact?

Master Pneumatic Uses Cookies


We utilize cookies to personalize and enhance your overall experience on our website. When you select "Accept All Cookies", you are agreeing to our use of cookies. You may customize what cookies you accept by selecting the "Settings" link below. Please read the Cookies Section in our Data Privacy Policy for more details or to make changes to your Settings selection.


California Residents: Please review the California Privacy Rights section in our Privacy Policy.


These cookies help us improve and optimize our website by tracking user behavior.

These cookies help you navigate our website by supplying optimized recommendations based on your preferences.

Functionality Cookies

These cookies enhance the functionality and convenience of our website, including experiences such as automatic log in which utilizes encrypted user data.

Settings
