Critical Regulatory Standards and Compliance

Transportation pneumatic systems must meet stringent regulatory and industry standards. Master Pneumatics’ products are designed to support compliance with:

• ISO 8573-1 Compressed Air Quality Standard
• APTA Standards for Rail Transportation
• OSHA Lockout/Tagout Requirements
• DOT and FRA Compliance for Rail Systems

ISO 8573-1 Air Quality Standard

ISO 8573-1 defines air quality classes based on maximum allowable concentrations of three contaminant categories:

1. Particulate contamination (measured in micrometers)
2. Water content (measured as dew point)
3. Oil aerosol content (measured in mg/m³)

Transportation applications typically require ISO Class 2-3 air quality, meaning:

1. Particle size: 4 micron (Class 2) or 6 micron (Class 3) maximum
2. Dew point: -25°C to -40°C (depending on operation temperature)
3. Oil content: Less than 2-3 mg/m³

Master Pneumatics’ multi-stage filtration systems—combining 5-micron general-purpose filters, 0.3-micron coalescing elements, and optional desiccant dryers—reliably deliver ISO Class 2 air quality, exceeding transportation industry requirements.

APTA Standards for Passenger Rail

The American Public Transportation Association (APTA) establishes specific air quality standards for passenger and freight rail equipment:

1. APTA Standard SS-M-011-99: Compressed Air Quality for Passenger Locomotive and Car Equipment
2. APTA Standard SS-M-014-99: Air Supply System Qualification Test Methods
3. APTA Standard SS-M-020-95: Freight Car Air Brake System Requirements

These standards mandate:

1. Regular testing of air supply systems (minimum annually, typically every 368 days)
2. Maximum water vapor content (specific dew point requirements)
3. Particle removal standards consistent with ISO 8573
4. Documentation and record-keeping for compliance verification

Master Pneumatic products carry certifications supporting APTA compliance, with documentation packages available for regulatory audits.

OSHA Compliance (29 CFR 1910.147)

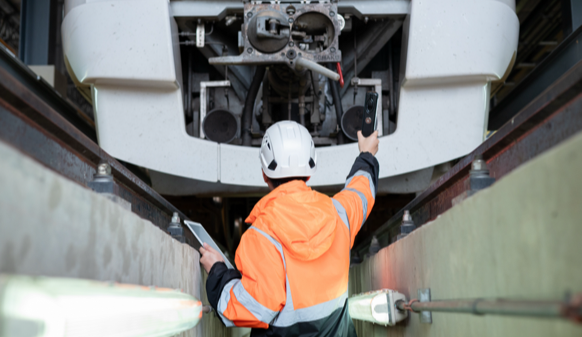

OSHA Regulation 29 CFR 1910.147 requires that all pneumatic equipment have energy isolating devices (lockout valves) capable of being secured in the closed position. This is critical for transportation maintenance, where technicians service brake systems, control valves, and air motors without risk of unexpected pressurized air release.

Master Pneumatics’ lockout valve solutions include:

1. Manual lockout valves with padlock provisions
2. Integral lockout functionality in FRL combinations
3. Delayed pressure buildup valves prevent accidental startup
4. Exhaust ports that safely vent downstream pressure when locked closed

These products are specified in transportation maintenance procedures across Class I railroads, fleet maintenance facilities, and port equipment operators.

DOT and FRA Safety Regulations

The Federal Railroad Administration (FRA) establishes safety standards for freight and passenger rail operations, including brake system performance requirements.

Master Pneumatics’ air preparation solutions support compliance by:

1. Ensuring consistent brake pipe pressure (typically 90 PSI for road service)
2. Removing water and oil that can compromise brake valve response time
3. Maintaining component cleanliness, preventing air brake fade and inconsistent performance
4. Supporting air supply system testing and documentation requirements

Frequently Asked Questions About Transportation Pneumatic Systems

• Q: Why is moisture in brake lines such a critical concern?

  A: Water in air brake systems creates multiple failure mechanisms. In cold weather, water freezes, creating ice blockages that prevent air flow to brake chambers, potentially causing complete brake failure. Water also corrodes brake components, promoting rust formation and valve sticking. Additionally, moisture enables microbial growth in storage tanks, creating sediment that clogs precision orifices in control valves. Even small amounts of water can cause ABS valve malfunction. Proper air drying is the most cost-effective way to prevent these failures.

• Q: What is the difference between Class 2 and Class 3 ISO 8573 air quality?

  A: ISO 8573 defines air quality classes based on maximum allowable contaminants. Class 2 allows particles down to 4 microns, dew points of -25°C to -40°C, and oil content below 2 mg/m³. Class 3 is slightly more permissive, allowing 6-micron particles and dew points down to -15°C. Most transportation applications require Class 2 or better. Master Pneumatics’ standard multi-stage systems reliably deliver Class 2 quality, and can achieve Class 1 (ultra-clean) when required for sensitive equipment.

• Q: How often should air brake systems be tested for compliance with APTA standards?

  A: APTA standards typically require air quality testing at least annually (every 368 days), though many transportation operators test more frequently (quarterly or semi-annually) to catch issues early. Testing should occur before major seasonal transitions (e.g., before winter when moisture becomes more critical) and whenever major compressor components are overhauled or replaced. Master Pneumatic can provide testing protocol guidance and documentation support for regulatory audits.

• Q: What is the difference between air dryers and filters?

  A: Filters remove particulate contamination and liquid water droplets. Air dryers (desiccant dryers) remove water vapor that hasn't yet condensed to liquid. For complete air preparation, both are needed. A 5-micron filter removes gross water and particles, a desiccant dryer removes water vapor, and a coalescing filter removes oil. Together, they deliver clean, dry, oil-free compressed air. Skipping the drying stage means water vapor will eventually condense downstream when temperatures drop, causing the same failures that filters alone cannot prevent.

• Q: How do I know if my current air preparation system is adequate?

  A: Several warning signs indicate air quality problems: brake valve sluggishness or inconsistent response, corrosion inside brake lines or tanks, oil film on internal components, automatic drain accumulation (more than a quart per week indicates excessive moisture), and unexplained brake system maintenance frequency. Master Pneumatics’ free equipment assessment evaluates your system against transportation standards and identifies improvement opportunities. Many operators are surprised by how simple upgrades prevent expensive failures.

• Q: What is the benefit of controlled lubrication versus traditional mist lubricators?

  A: Traditional mist lubricators atomize oil into fine droplets, with 50-90% exiting through valve exhaust ports and contributing to air pollution. Serv-Oil precision injection delivers controlled oil drops directly to equipment, providing optimal lubrication without excess. This extends component life 2.5-3x, reduces maintenance costs 50-90%, prevents varnish buildup, improves equipment precision (important for cargo handling accuracy), and eliminates environmental concerns. For transportation operators running hundreds of air motors and cylinders, the efficiency and cost savings are substantial.

• Q: Are Master Pneumatic products compatible with my existing equipment?

  A: Master Pneumatic manufactures FRL components in standard port sizes (1/8", 1/4", 3/8", 1/2", 3/4", 1") with both NPT and BSPP threading, compatible with virtually all transportation equipment. We also offer custom solutions for unique requirements. Our technical team can verify compatibility with your specific equipment and recommend appropriate mounting solutions. For system retrofits, we provide sizing and installation guidance, ensuring new components integrate seamlessly with existing equipment.
