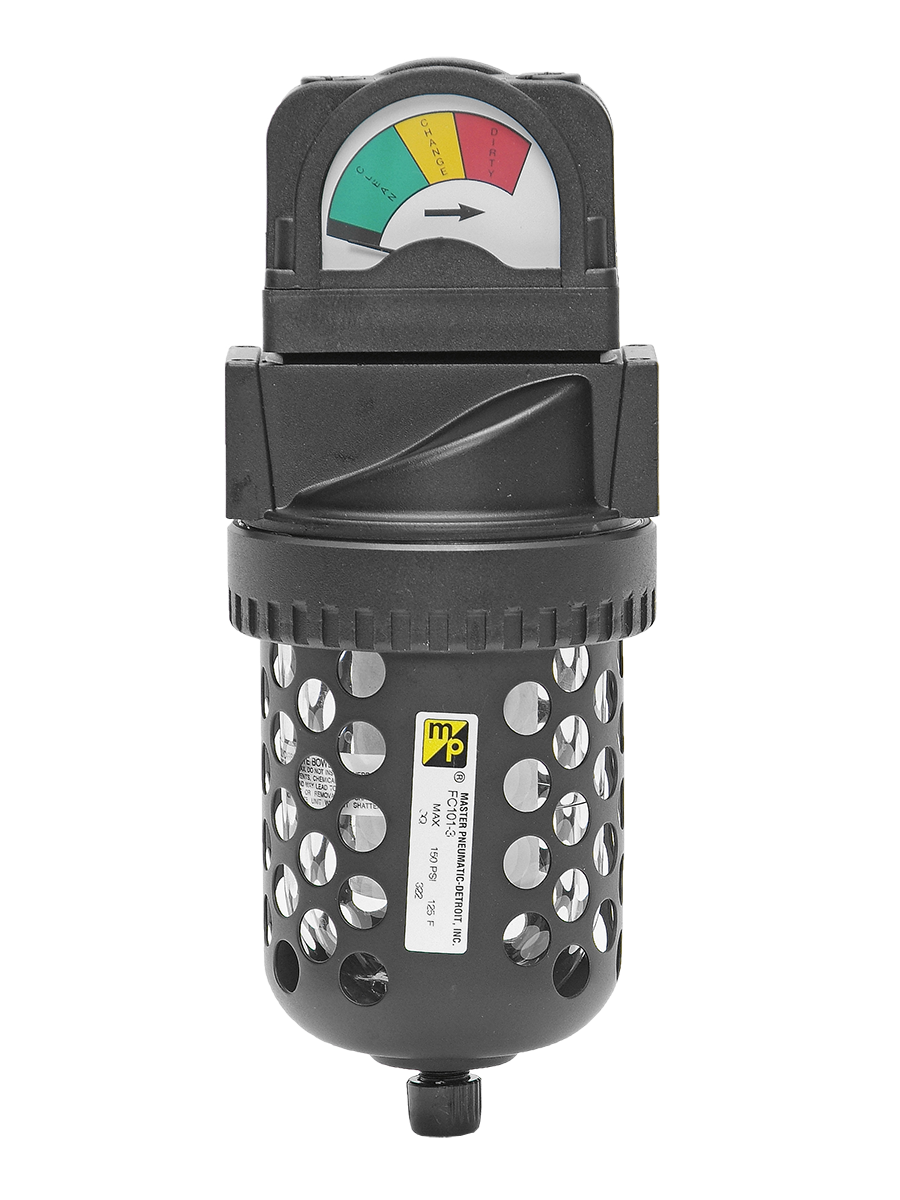

101 Series FC101E-8W
- In-line mounting
- 0.3-μm-rated coalescing filter element; optional 0.01-μm element
- Differential pressure gauge
- High-strength polycarbonate plastic filter bowl with steel shatter guard; optional metal bowl with clear nylon sight glass
- Manual filter drain; optional automatic internal drain and internal float drain
Product Information
| Mounting | Inline |
| Bowl Type | Plastic |
| Bowl Capacity | 16 oz (480 ml) |
| Connection | Threaded Ports |
| Port Size | 1" |
| Port Thread | G (BSPP) |
| Condensate Drain | Manual – Drain Knob |
| Filtration Rating | 0.3 μm |
| Element Material | Borosilicate Glass Fiber |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Differential Pressure Gauge | Large Dual Face Gauge with N.O. Reed Switch |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Condensed Air |
| Body Material | Zinc |
| Bowl Material | Polycarbonate Bowl with Steel Shutter Guard |
| Bowl Ring Material | Aluminum |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.38 lb (1.09 kg) |
+
101 Series
FC101E-8W
Contact Us for a 3D Model
+
101 Series
FC101E-8W
Contact Master Pneumatic for Ordering Information
+
