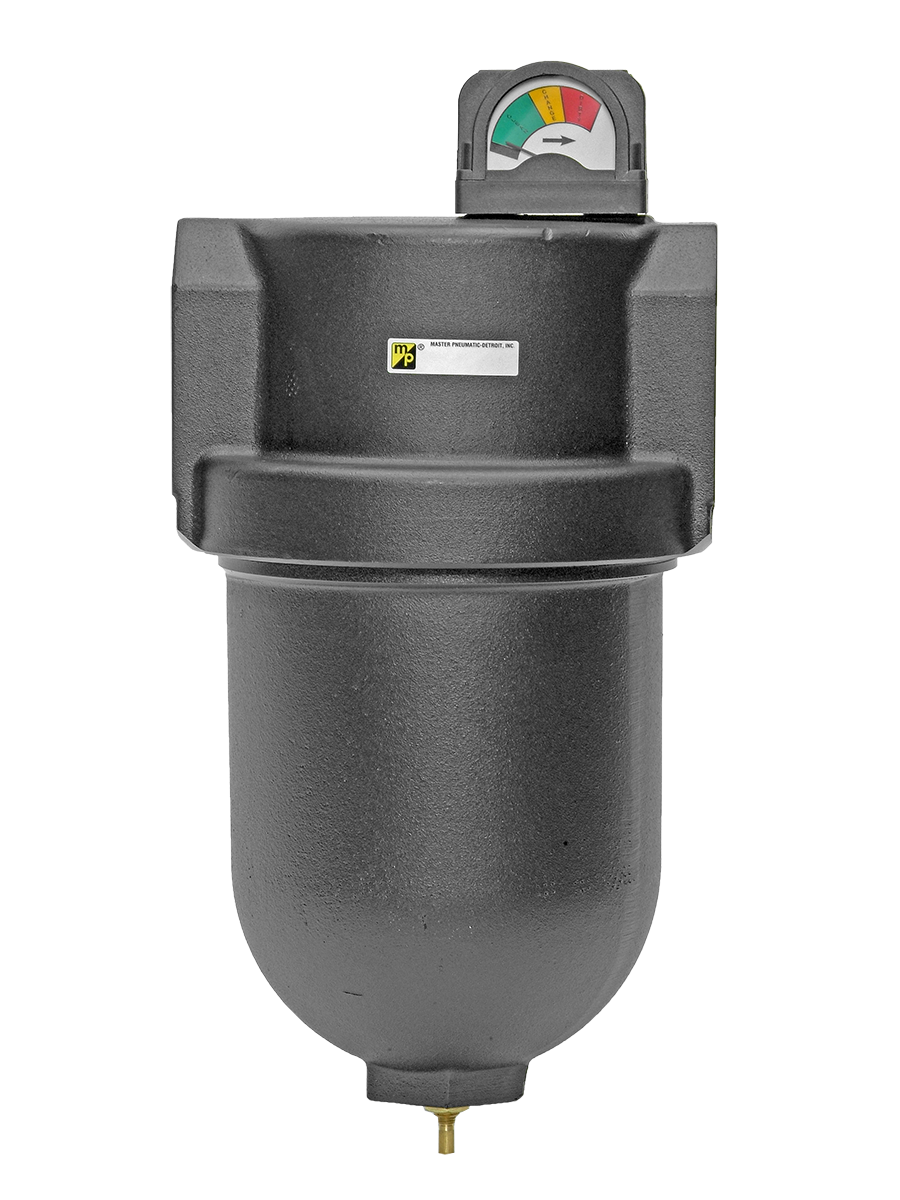

401 Series BFC7A401HE2-16E8W
- In-line mounting
- 0.3-μm-rated coalescing filter element; optional 0.01-μm element
- Differential pressure gauge
- Aluminum bowl
- Manual filter drain; optional internal float drain
Product Information
| Mounting | Inline |
| Bowl Type | Metal |
| Bowl Capacity | 233 oz (7000 ml) |
| Connection | Threaded Ports |
| Port Size | 2" |
| Port Thread | G (BSPP) |
| Condensate Drain | No Drain – Drain Port only, with 1/4 NPTF Female Port |
| Filtration Rating | 0.01 μm |
| Element Material | Borosilicate Glass Fiber |
| Operating Pressure | 0 to 300 psig (0 to 21 bar) |
| Differential Pressure Gauge | Large Dual Face Gauge with N.C Reed Switch |
| Ambient/Medium Temperature | -4° to 175°F (-20° to 80°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Aluminum |
| Bowl Material | Aluminum |
| Seal Material | Nitrile (Buna-N) |
| Weight | 26.0 lb (11.8 kg) |
+
401 Series
BFC7A401HE2-16E8W
