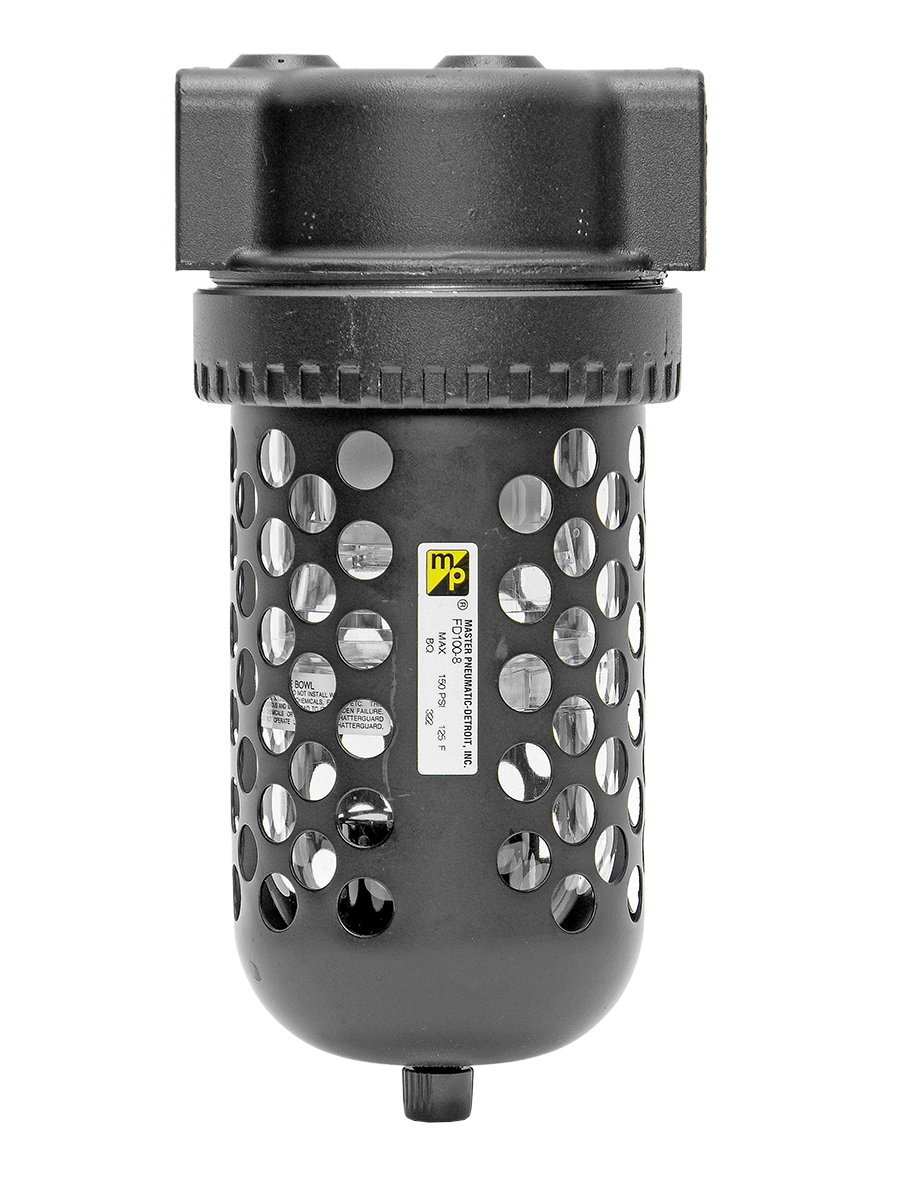

100 Series FD101-8E5NG
- In-line mounting
- 5-μm-rated polyethylene filter element; optional sintered bronze elements
- High-strength polycarbonate plastic filter bowl with steel shatter guard; optional metal bowl with clear nylon sight glass
- Automatic internal drain; optional manual drain, or internal float drain
Product Information
| Mounting | Inline |
| Bowl Type | Plastic |
| Bowl Capacity | 16 oz (480 ml) |
| Connection | Threaded Ports |
| Port Size | 1" |
| Port Thread | NPTF |
| Drain Type | Internal |
| Condensate Drain | Automatic – Differential Pressure |
| Filtration Rating | 5 µm |
| Element Material | Sintered Bronze |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Differential Pressure Gauge | None – Tapped Gauge Ports Only |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Aluminum |
| Bowl Material | Polycarbonate Bowl with Steel Shatter Guard |
| Bowl Ring | Aluminum |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.44 lb (1.11 kg) |
+
100 Series
FD101-8E5NG
