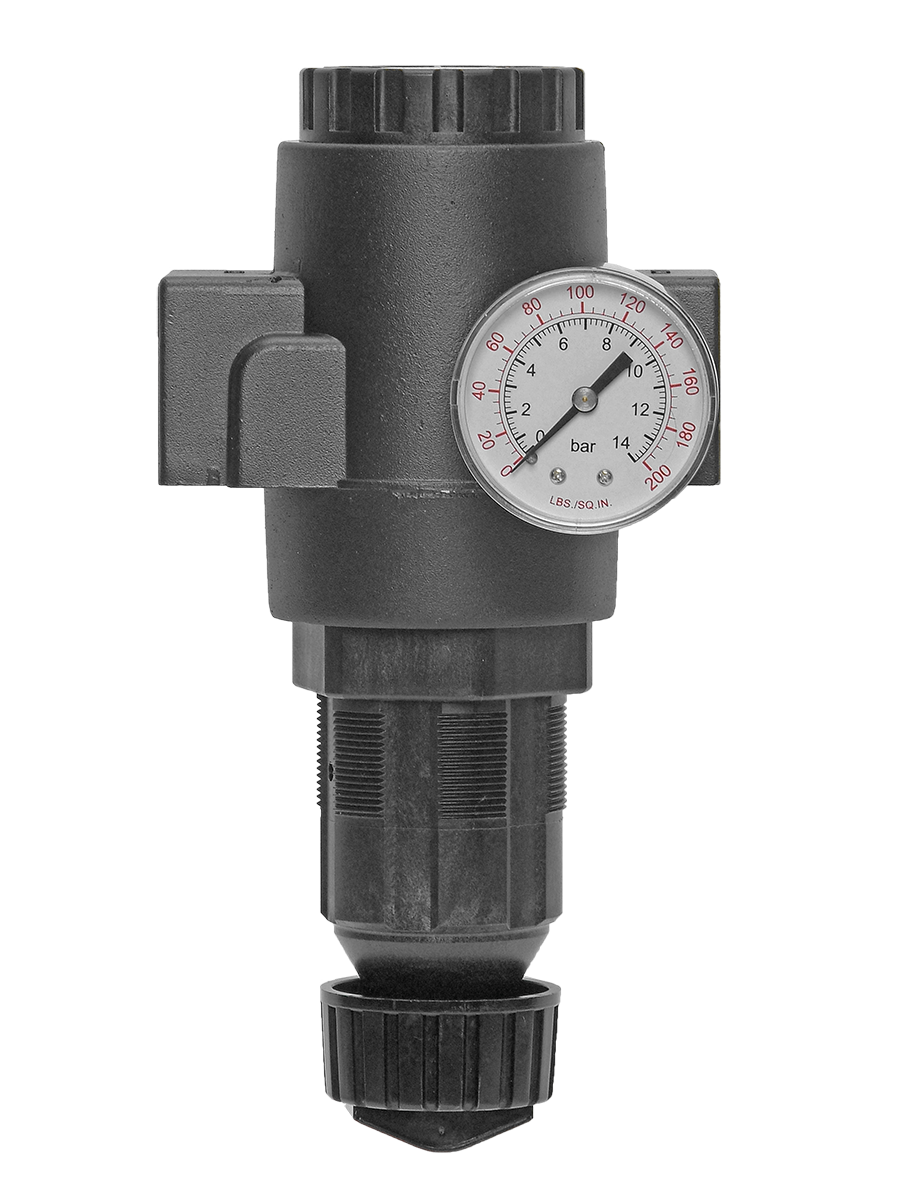

180 Series R180M-6AL
- In-line mounting.
- Piston-type design.
- Self-relieving; non-relieving optional.
- Optional pressure gauges.
- Pressure adjustment locking Knob.
Product Information
| Construction Design | Diaphragm |
| Mounting | Inline |
| Port Size | 3/4" |
| Port Thread | NPTF |
| Excess Pressure Release | Non-Relieving |
| Flow Options | Standard Flow |
| Regulated Pressure Range | 0-50 psig (0-3.4 bar) |
| Pressure Adjustment Type | Knob |
| Pressure Gauge | Not Included |
| Operating Pressure (Inlet) | Maximum 300 psig (21 bar) |
| Operating Pressure (Outlet) | Adjustable up to 150 psig (10 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Dome Material | Nylon |
| Knob Material | Acetal |
| Weight | 2.19 lb (0.99 kg) |
+
180 Series
R180M-6AL
