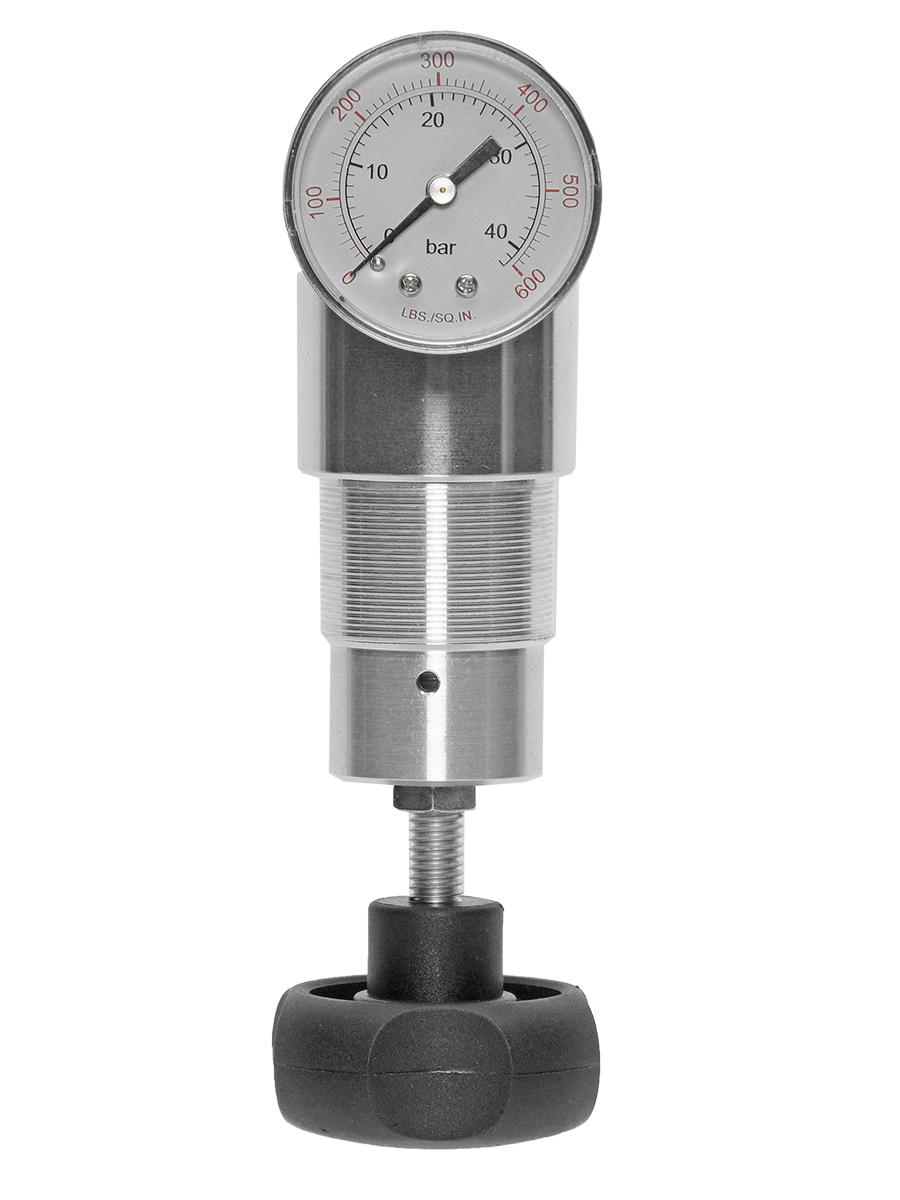

67 Series R67-3AVG2
- 400 PSIG maximum inlet pressure.
- Pressure adjustment has a locking feature (Locknut).
- Self-relieving; non-relieving optional.
- Extra-strength metal dome.
- Aluminum body and dome; piston operation design.
Product Information
| Construction Design | Piston |
| Port Size | 3/8" |
| Port Thread | NPTF |
| Excess Pressure Release | Non-Relieving |
| Valve Seat | Standard |
| Regulated Pressure Range | 0 to 390 psig (0 to 26 bar) |
| Pressure Gauge | Analog Gauge |
| Pressure Gauge Range | 0-300 psig (0-21 bar) |
| Operating Pressure (Inlet) | Maximum 400 psig (27.5 bar) |
| Operating Pressure (Outlet) | Adjustable up to 390 psig (26 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Aluminum |
| Dome Material | Aluminum |
| Knob Material | Glass Filled Nylon |
| Seal Material | Fluorocarbon (Viton) |
| Weight | 1.30 lb (0.59 kg) |
+
67 Series
R67-3AVG2
