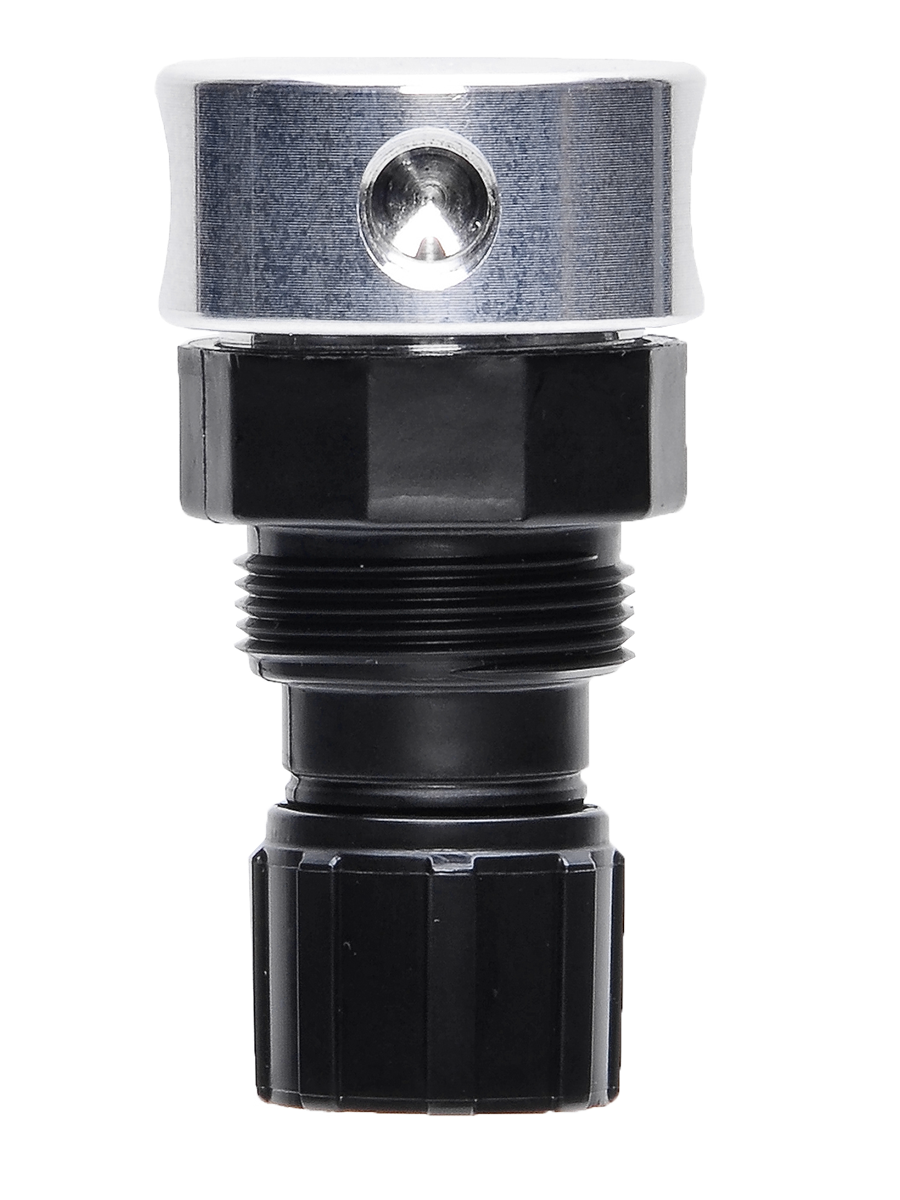

56 Series Stainless Steel R56S-2AL15VW
- Stainless steel construction provides unique corrosion resistance
- Viton elastomers throughout
- In-line mounting
- Diaphragm-type design
- Self-relieving and non-relieving options available
R56S-2AL15VW
$274.68
Quantity
Estimated Ship Date: 06/23/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Construction Design | Diaphragm |
| Port Size | 1/4" |
| Port Thread | G (BSPP) |
| Excess Pressure Release | Non-Relieving |
| Regulated Pressure Range | 0 to 15 psig (0 to 1 bar) |
| Operating Pressure (Inlet) | Maximum 300 psig (21 bar) |
| Operating Pressure (Outlet) | Adjustable up to 100 psig (7 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Stainless Steel |
| Dome Material | Glass Filled Nylon and Acetal |
| Knob Material | Glass Filled Nylon and Acetal |
| Seal Material | Fluorocarbon (Viton) |
| Weight | 0.24 lb (0.11 kg) |
+
56 Series Stainless Steel
R56S-2AL15VW
Contact Us for a 3D Model
+
56 Series Stainless Steel
R56S-2AL15VW
Contact Master Pneumatic for Ordering Information
+
