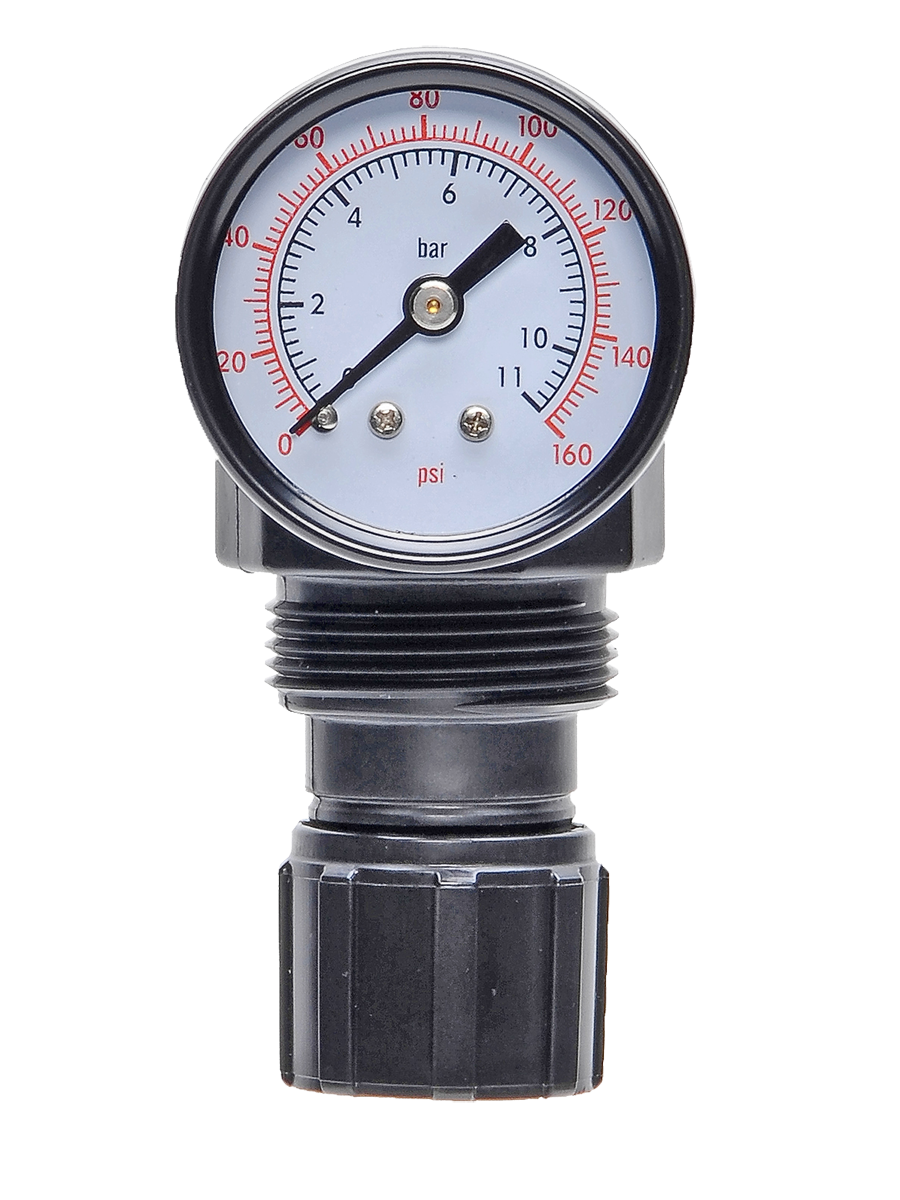

56 Series R56M-1AFLVGW
- Diaphragm-type design
- In-line mounting
- Self-relieving and non-relieving options available
- Pressure gauge included
- Nitrile (Buna-N) and Fluorocarbon (Viton) seal material options
Product Information
| Construction Design | Diaphragm |
| Port Size | 1/8" |
| Port Thread | G (BSPP) |
| Mounting | Inline |
| Excess Pressure Release | Non-Relieving |
| Dome Material | Plastic |
| Regulated Pressure Range | 0-50 psig (0-3.4 bar) |
| Pressure Adjustment Type | Knob |
| Pressure Gauge | 0 to 160 psig (0 to 11 bar) |
| Operating Pressure (Inlet) | Maximum 300 psig (21 bar) |
| Operating Pressure (Outlet) | Adjustable up to 100 psig (7 bar) |
| Ambient/Medium Temperature Range | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Aluminum |
| Seal Material | Fluorocarbon (Viton) |
| Knob Material | Polypropylene |
| Weight | 0.24 lb (0.11 kg) |
+
56 Series
R56M-1AFLVGW
