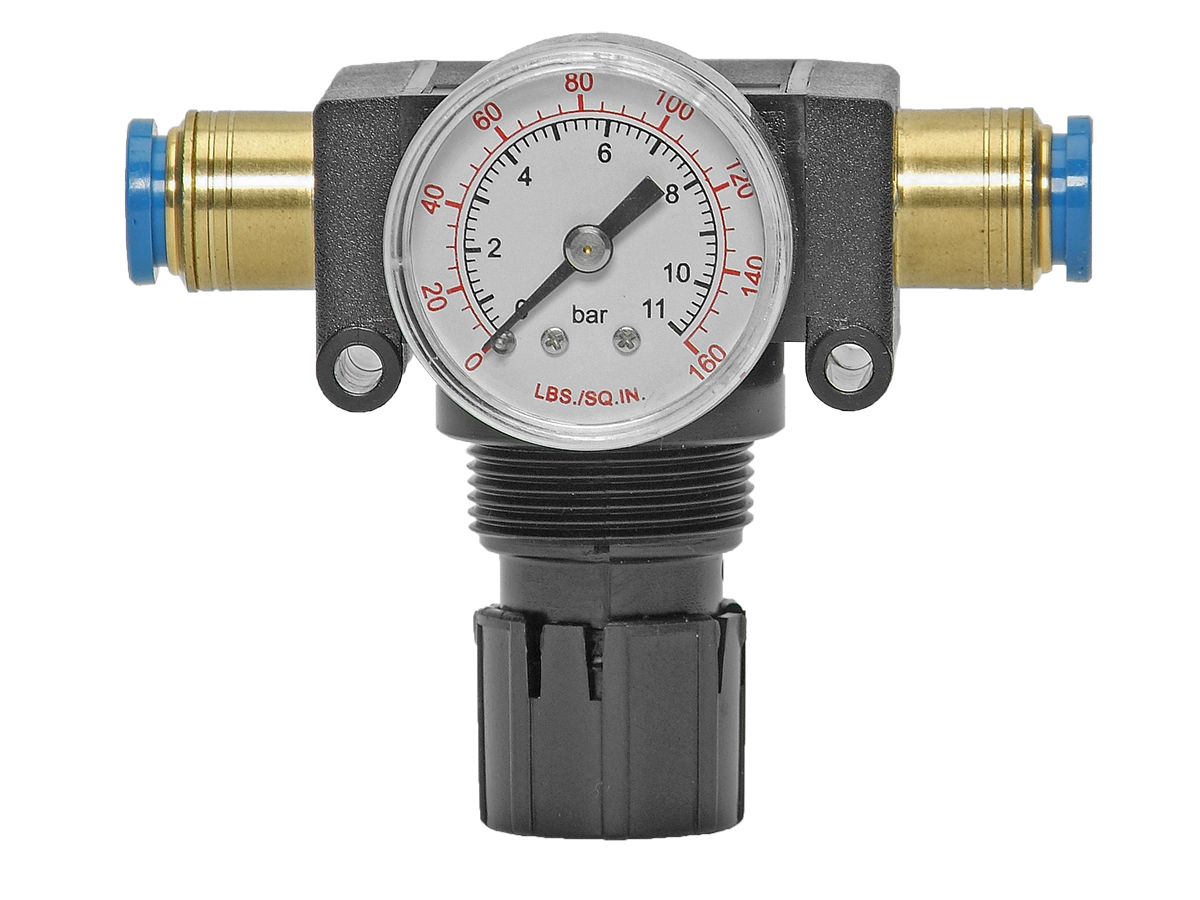

13 Series R13M-2AL30C1W
- Designed to set pilot pressure of the water for the main valve in a sprinkler system
- Piston-type design
- Non-relieving
- Corrosion-resistant construction
- Nitrile seal material
Product Information
| Mounting | Inline |
| Excess Pressure Release | Non-Relieving |
| Port Size | 1/4" |
| Port Thread | G (BSPP) |
| Valve Seat | Large Delrin valve seat |
| Regulated Pressure Range | 0 to 30 psig (0 to 2.1 bar) |
| Pressure Gauge | Not Included |
| Operating Pressure (Inlet) | Maximum 150 psig (10 bar) |
| Operating Pressure (Outlet) | Adjustable up to 100 psig (7 bar) |
| Ambient/Medium Temperature | 35° to 125°F (1.7° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Water |
| Body Material | Acetal |
| Dome Material | Acetal |
| Knob Material | Acetal |
| Seal Material | Nitrile (Buna-N) |
| Weight | 0.43 lb (0.19 kg) |
+
13 Series
R13M-2AL30C1W
