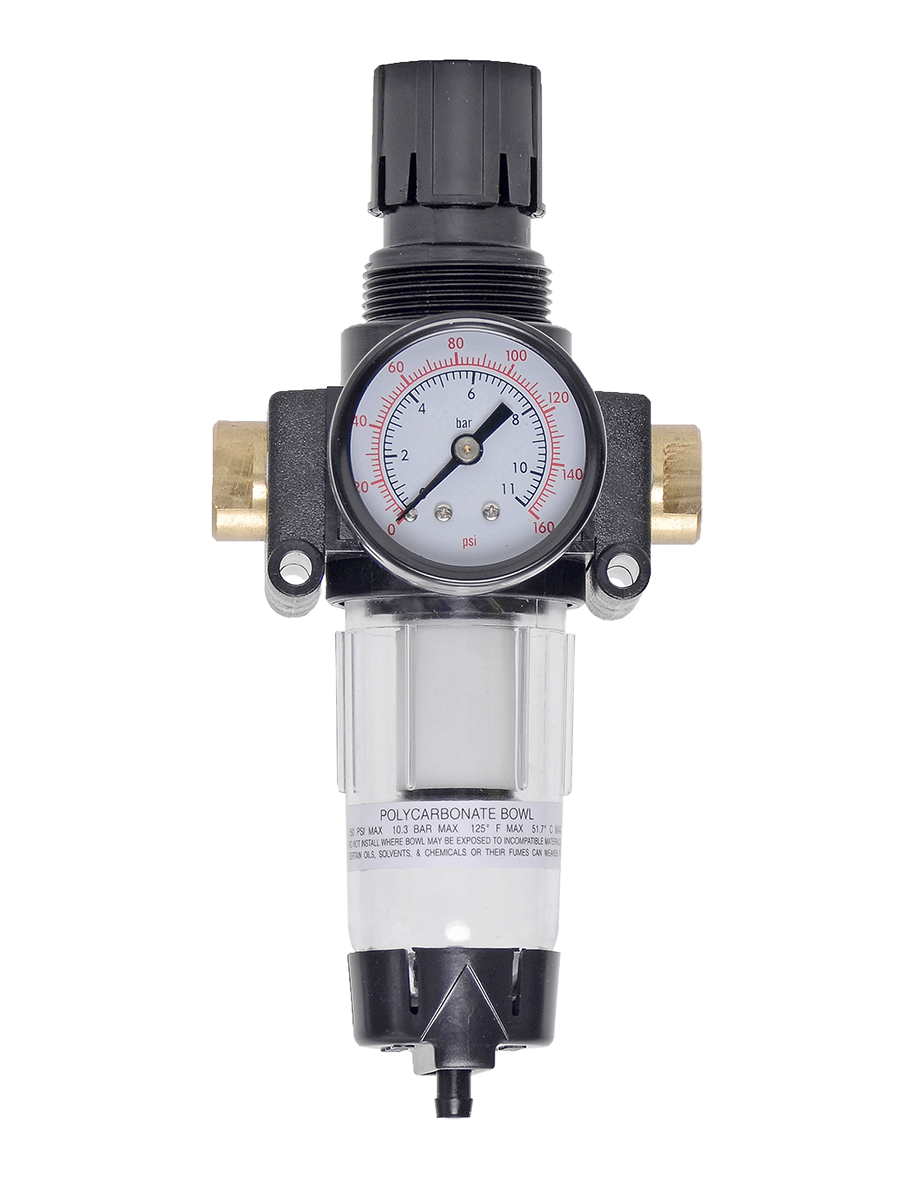

11 Series BCFR11M-06E3NG
- Filter and regulator consolidated in a single assembly
- Modular assembly and mounting
- 5-μm-rated polyethylene filter element; 5-μm, 20-μm 40-μm rated sintered bronze element options available
- High-strength polycarbonate plastic and metal bowl options available
- Automatic internal drain and manual drain type options available
- Diaphragm-type regulator
- Self-relieving regulator and non-relieving options available
- Pressure gauge option available
Product Information
| Bowl Type | Metal |
| Bowl Size | 2 oz (60 ml) |
| Port Type | Tube fitting |
| Port Size | 3/8" |
| Port Thread | Tube fitting |
| Mounting | Modular |
| Panel Mount Hole | 1-3/16 in (30 mm) |
| Filter Element Rating | 40 µm |
| Filter Element Material | Bronze |
| Condensate Drain | Manual drain |
| Regulator Type | Diaphragm |
| Gauge Option | Not Included |
| Excess Pressure Relief | Self-Relieving |
| Regulated Pressure Range | 0 to 100 psig (0 to 7 bar) |
| Pressure Gauge Port Size | 1/8" NPT |
| Ambient/Medium Temperature | -4 to 125F (-20 to 52C) |
| Medium Temperature Caution | For temperatures below 35F (2C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-] |
| Fluid Medium | Compressed Air |
| Body Material | Acetal |
| Bowl Material | Aluminum |
| Seals Material | Nitrile |
| Dome and Knob Material | Acetal |
+
11 Series
BCFR11M-06E3NG
Contact Us for a 3D Model
+
11 Series
BCFR11M-06E3NG
Contact Master Pneumatic for Ordering Information
+
