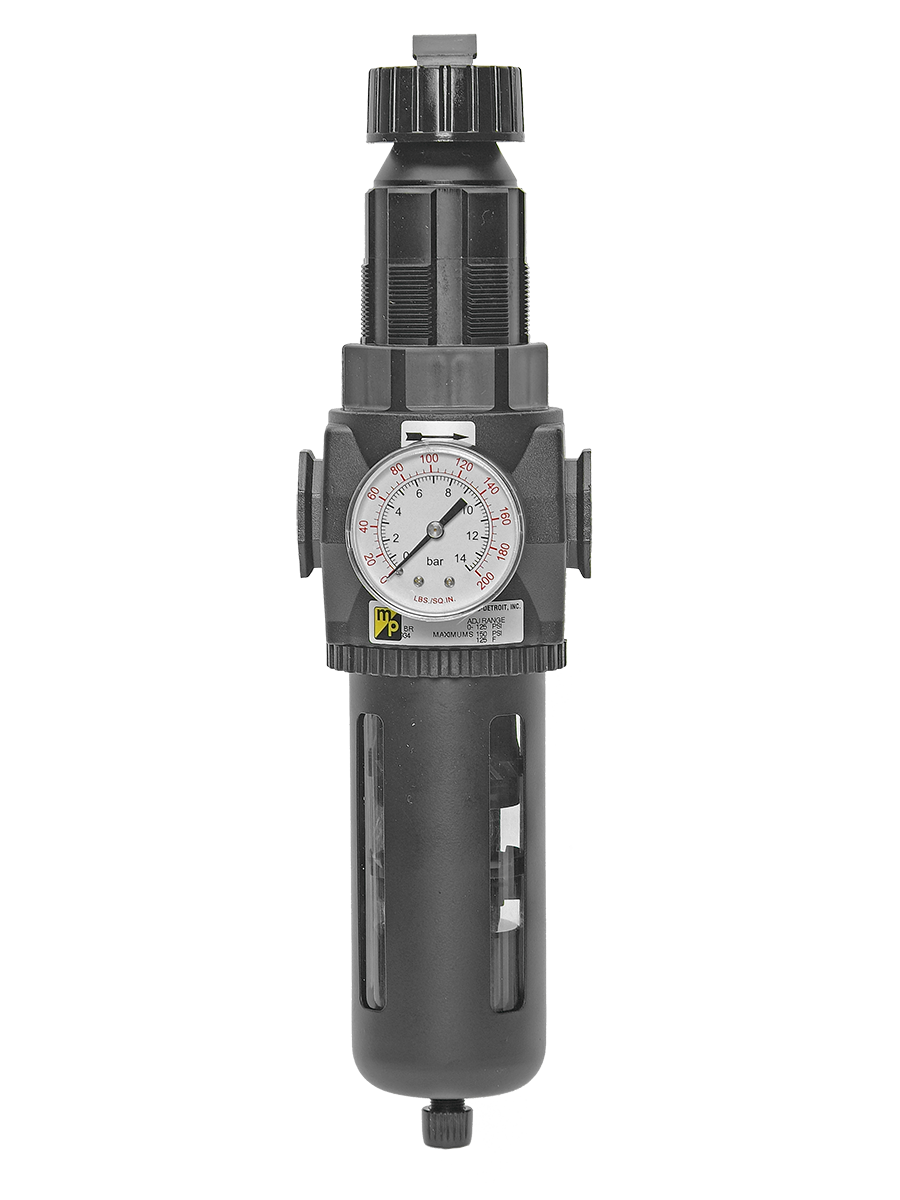

380 Series BCFR380-4AE5H
- Filter and regulator consolidated in a single assembly
- Modular or In-line mounting
- 5-μm-rated polyethylene filter element; optional 40-μm polyethylene, 5-μm or 20-μm bronze
- Polycarbonate plastic bowl with steel shatterguard; optional metal bowl with sight glass
- Automatic internal drain; optional manual drain or internal float drain
- Self-relieving diaphragm-type regulator; non-relieving optional
- Pressure adjustment locking knob; tamper resistant pressure setting
- Pressure gauge optional; two gauge ports
Product Information
| Bowl Type | Metal |
| Bowl Size | 9 oz (271 ml) |
| Port Size | 1/2" |
| Port Thread | NPTF |
| Mounting | Modular/Inline |
| Panel Mount Hole | 2.05 in (52.1 mm) |
| Filter Element Rating | 5 µm |
| Filter Element Material | Bronze |
| Condensate Drain | Manual drain |
| Regulator Type | Diaphragm |
| Gauge Option | Not Included |
| Excess Pressure Relief | Non-relieving |
| Regulated Pressure Range | 0 to 175 psig (0 to 12 bar) |
| Pressure Gauge Port Size | 1/4" NPT |
| Operating Pressure | 0 to 200 psig (0 to 14 bar) |
| Ambient/Medium Temperature | -4 to 150F (-20 to 66C) |
| Medium Temperature Caution | For temperatures below 35F (2C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-] |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Seals Material | Nitrile |
| Dome Material | Aluminum |
| Weight | 3.69 lb (1.68 kg) |
+
380 Series
BCFR380-4AE5H
