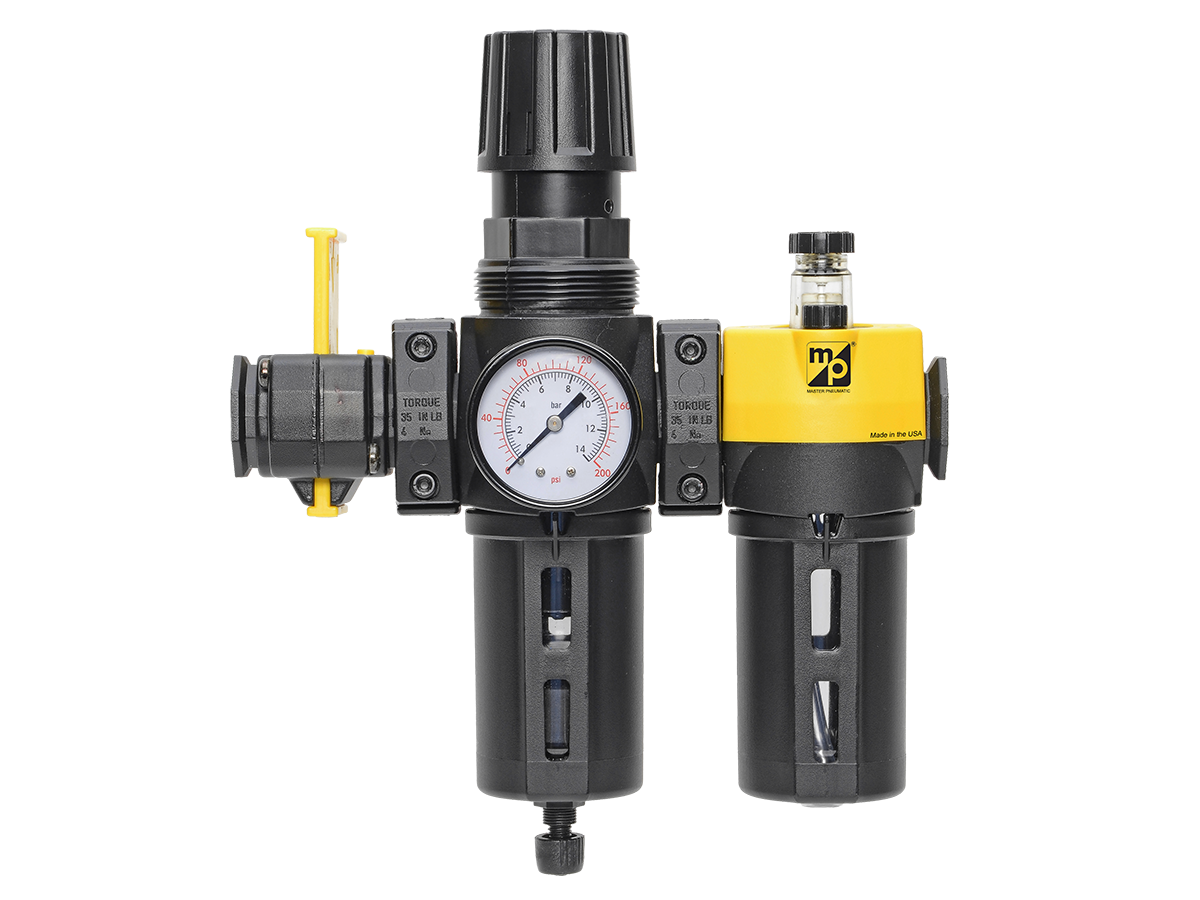

350 Series DBG3A0B8A1D
- Filter and regulator consolidated in a single assembly; sight-feed lubricator; lockout valve
- Modular assembly and mounting
- 5-μm-rated polyethylene filter element; optional sintered bronze elements
- High-strength polycarbonate plastic bowls or aluminum bowls
- Automatic internal filter drain or manual drain
- Piston-type regulator
- Self-relieving regulator; non-relieving optional
- Pressure gauge
DBG3A0B8A1D
$347.38
Quantity
Estimated Ship Date: 08/04/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Mounting | Modular/Inline |
| Mounting Brackets | None |
| Cap Color | Blue |
| Bowl Type | Metal |
| Bowl Size | 5.1 oz (151 ml) |
| Connection | Threaded Ports |
| Port Size | 1/2" |
| Port Thread | G (BSPP) |
| Condensate Drain | Float Drain (Brass Stem) |
| Filter Element Rating | 5 μm |
| Filter Element Material | Polyethylene |
| Regulator Type | Diaphragm |
| Excess Pressure Relief | Self-Relieving |
| Regulated Pressure Range | 0 to 100 psig (0 to 7 bar) |
| Gauge Option | 200 BDD (0–200 psi) |
| Lubricator Type | Sight-Feed |
| Fill Method | Fill Port |
| Lockout Valve | Not Included |
| Operating Pressure | 30−200 psig (2−14 bar) |
| Ambient/Medium Temperature | 4° to 150°F (20° to 66°C) |
| Medium Temperature Caution | Dry air required below 35°F (2°C) ISO 8573-1 [-:3:-] |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Bowl Material | Aluminum with nylon sight glass |
| Seal Material | Nitrile (Buna-N) |
| Weight | 5.1 lb (2.3 kg) |
+
350 Series
DBG3A0B8A1D
Contact Us for a 3D Model
+
350 Series
DBG3A0B8A1D
Contact Master Pneumatic for Ordering Information
+
