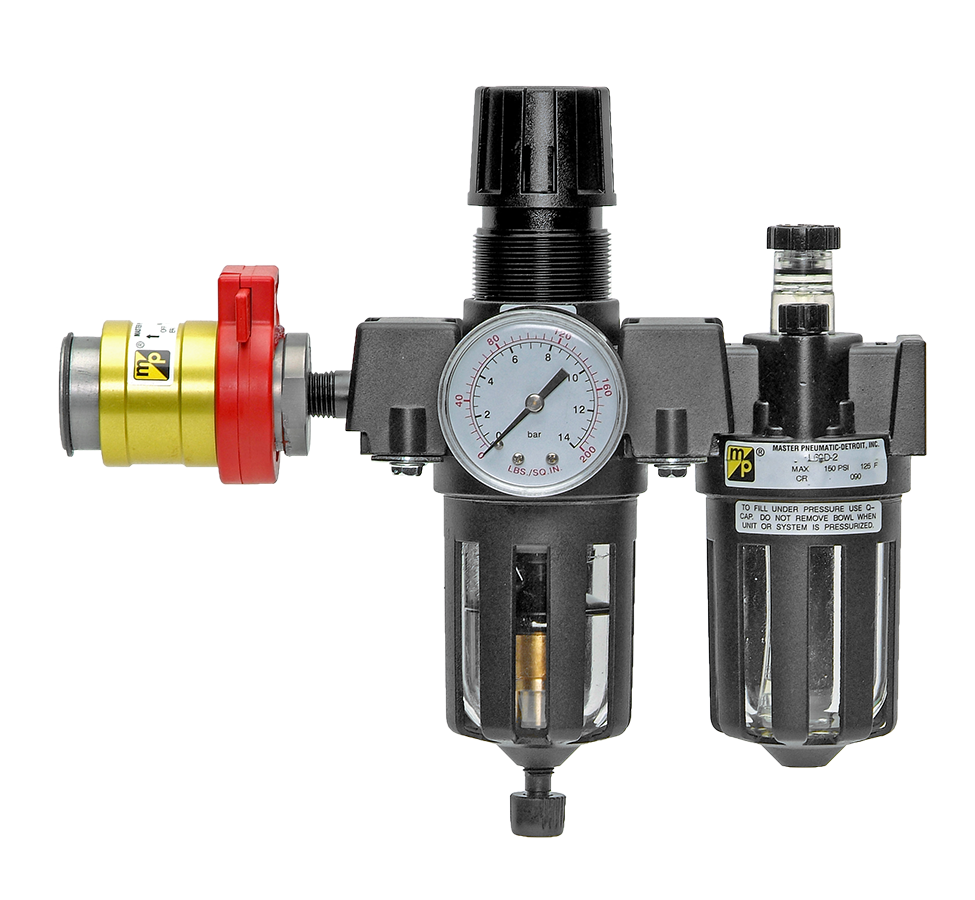

60 Series CFRL60D-3W
- Filter and regulator consolidated in a single assembly; sight-feed lubricator; lockout valve.
- Modular assembly and mounting.
- 5-μm-rated polyethylene filter element; optional sintered bronze elements.
- High-strength polycarbonate plastic bowls or aluminum bowls.
- Automatic internal filter drain or manual drain.
- Piston-type regulator.
- Self-relieving regulator; non-relieving optional.
- Pressure gauge.
CFRL60D-3W
$274.95
Quantity
Estimated Ship Date: 07/02/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Mounting | Modular/Inline |
| Component Assembly Connection | Pipe Nipple |
| Bowl Type | Plastic |
| Port Size | 3/8" |
| Connection | Threaded Port |
| Port Thread | G (BSPP) |
| Condensate Drain | Manual Drain |
| Filter Element Rating | 5 µm |
| Filter Element Material | Polyethylene |
| Regulator Type | Piston |
| Gauge Option | Gauge Included |
| Excess Pressure Relief | Self-Relieving |
| Regulated Pressure Range | 0 to 100 psig (0 to 7 bar) |
| Lubricator Type | Sight-Feed |
| Fill Method | Fill Port |
| Lockout Valve | Not Included |
| Panel Nut | None |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F(2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-] |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Bowl Material | Polycarbonate |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.9 lb (1.34 kg) |
+
60 Series
CFRL60D-3W
Contact Us for a 3D Model
+
60 Series
CFRL60D-3W
Contact Master Pneumatic for Ordering Information
+
