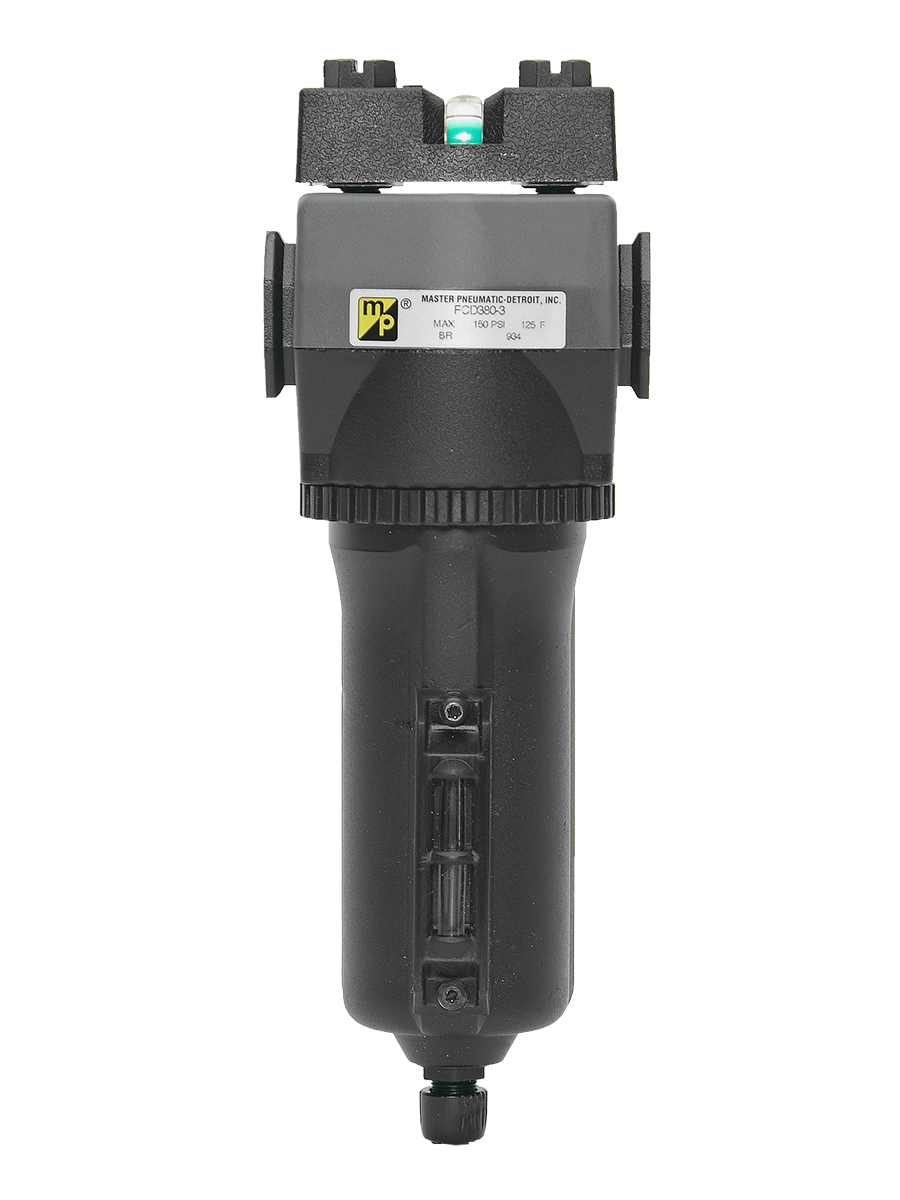

380 Series BFC6A380S-3E8W
- Modular assembly and mounting
- 0.3-μm-rated coalescing filter element; optional 0.01-μm-rated element
- High-strength polycarbonate plastic filter bowl; optional aluminum bowl
- Optional extended bowl with higher flow filter element
- Differential pressure gauge to indicate when filter element needs changing
- Automatic internal drain; optional manual drain
Product Information
| Mounting | Modular/Inline |
| Bowl Type | Metal |
| Bowl Capacity | 9 oz (266 ml) |
| Connection | Threaded Ports |
| Port Size | 3/8" |
| Port Thread | G (BSPP) |
| Condensate Drain | Automatic – Float Design |
| Filtration Rating | 0.01 μm |
| Element Material | Borosilicate Glass Fiber |
| Operating Pressure | 30 to 200 psig (2 to 14 bar) |
| Differential Pressure Gauge | Small Slide Indicator |
| Cap Color | Grey |
| Ambient/Medium Temperature | -4° to 150°F (-20° to 66°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Bowl Material | Aluminum Bowl with Clear Nylon Sight Glass |
| Bowl Ring Material | Nylon |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.13 lb (0.97 kg) |
+
380 Series
BFC6A380S-3E8W
Contact Us for a 3D Model
+
380 Series
BFC6A380S-3E8W
Contact Master Pneumatic for Ordering Information
+
