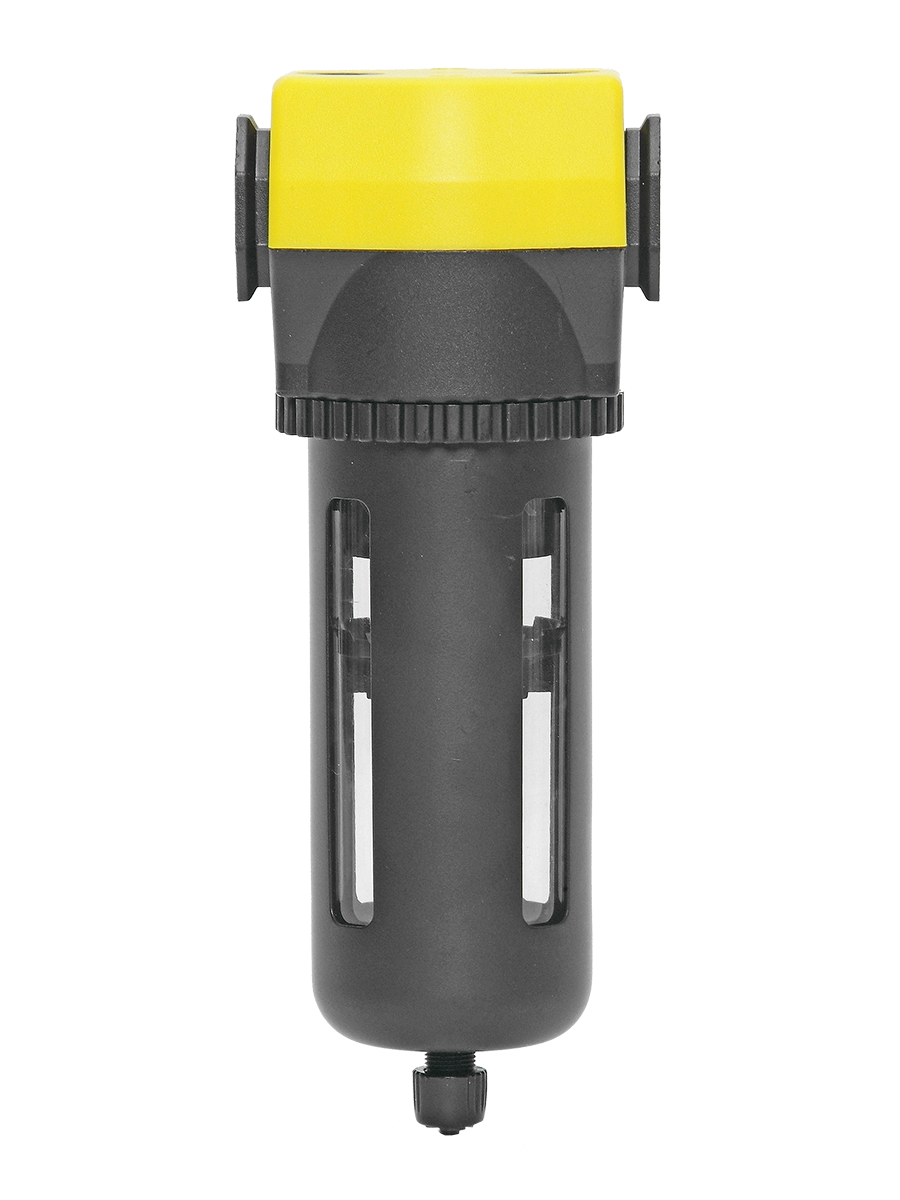

380 Series F5A380S-3C1E5W
- Modular assembly and mounting
- Threaded ports or quick-connect fittings for tubing up to 10 mm in diameter
- 5-μm-rated polyethylene filter element; optional sintered bronze elements
- High-strength polycarbonate plastic filter bowl; optional metal bowl
- Automatic internal drain; optional manual drain
Product Information
| Mounting | Modular/Inline |
| Bowl Type | Plastic |
| Bowl Capacity | 9 oz (266 ml) |
| Connection | Threaded Port |
| Port Size | 3/8" |
| Port Thread | G (BSPP) |
| Drain Type | Internal |
| Drain Port | Bowl with Drain |
| Condensate Drain | Automatic - Float Design |
| Cap Color | Yellow |
| Filtration Rating | 5 um |
| Element Material | Sintered Bronze |
| Pressure Gauge Ports | With Gauge Port |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Differential Pressure Gauge | Large Dual Face Gauge |
| Ambient/Medium Temperature | -4 to 125 F (-20 to 52 C) |
| Medium Temperature Cautions | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Bowl Material | Polycarbonate |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.13 lb (0.97 kg) |
+
380 Series
F5A380S-3C1E5W
Contact Us for a 3D Model
+
380 Series
F5A380S-3C1E5W
Contact Master Pneumatic for Ordering Information
+
