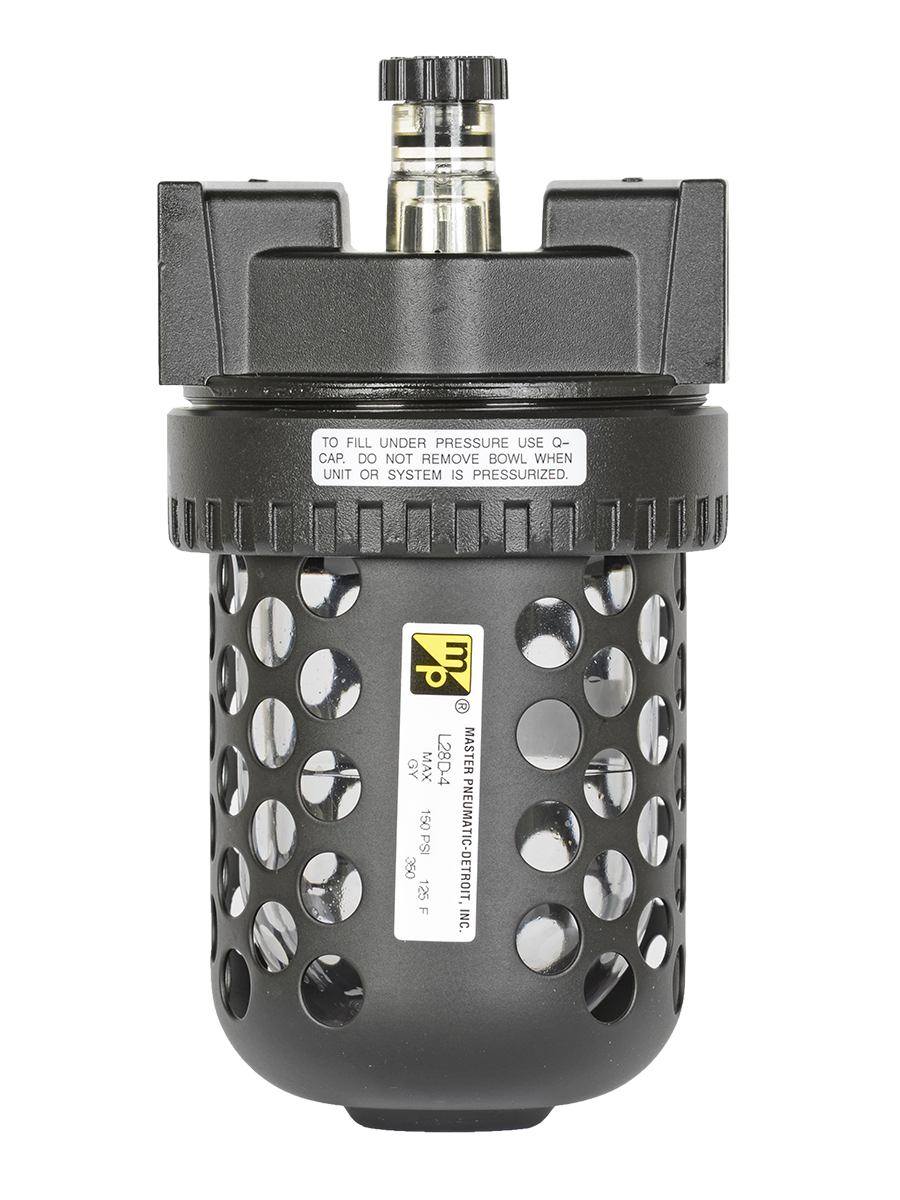

28 Series L28DH-6
- Modular or In-line mounting
- High-strength polycarbonate plastic bowl with steel shatter guard. Optional zinc bowl with sight glass
- Sight-feed design
- Transparent dome shows oil delivery
- Optional 20-oz extended bowl
- External adjusting knob; removable for tamper resistance
L28DH-6
$238.62
Quantity
Estimated Ship Date: 06/25/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Mounting | Modular /Inline |
| Bowl Type | Plastic |
| Bowl Capacity | 20 oz (592 ml) |
| Port Size | 3/4" |
| Connection | Threaded Ports |
| Thread Type | NPTF |
| Fill Method | Fill Port |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Oil Adjustment | External, tamper-resistant |
| Feed Design | Sight-feed |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F(2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-] |
| Fluid Medium | Compressed Air |
| Bowl Material | Polycarbonate with Steel Shatter Guard |
| Body Material | Zinc |
| Bowl Ring Material | Aluminum |
| Adjusting Knob Material | Nylon |
| Seal Material | Nitrile (Buna-N) |
| Weight | 3.8 lb (1.7 kg) |
+
28 Series
L28DH-6
Contact Us for a 3D Model
+
28 Series
L28DH-6
Contact Master Pneumatic for Ordering Information
+
