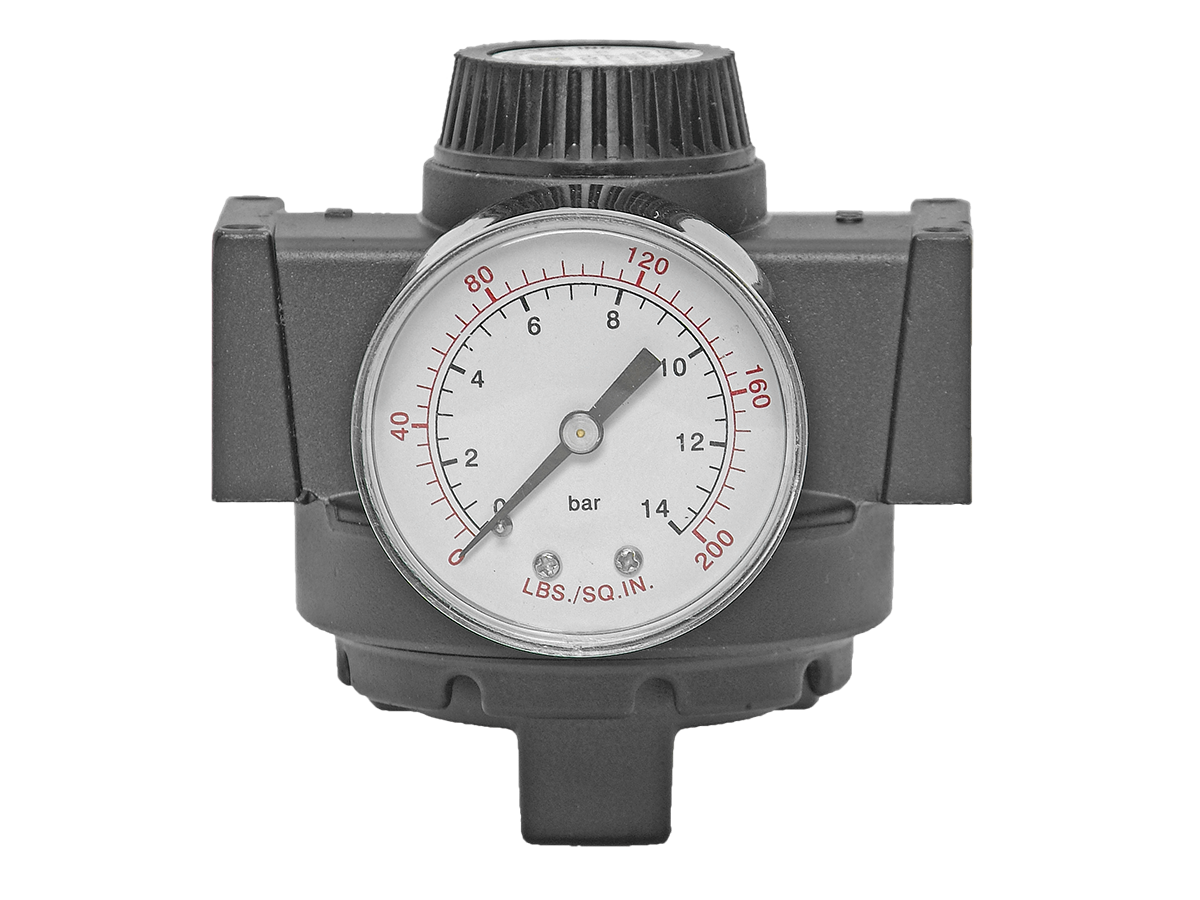

100 Series PR100-6G2
- Modular or In-line mounting
- Self-relieving diaphragm design
- Pressure gauge
Product Information
| Mounting | Modular/Inline |
| Port Size | 3/4" |
| Port Thread | NPTF |
| Excess Pressure Release | Self-Relieving |
| Pressure Gauge | Analog Gauge (0-300 PSI) |
| Operating Pressure (Inlet) | 0 to 300 psig (0 to 21 bar) |
| Operating Pressure (Outlet) | 0 to 250 psig (0 to 17 bar) |
| Ambient/Medium Temperature | -4° to 175°F (-20° to 80°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Dome Material | Zinc |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.1 lb (0.92 kg) |
+
100 Series
PR100-6G2
Contact Us for a 3D Model
+
100 Series
PR100-6G2
Contact Master Pneumatic for Ordering Information
+
