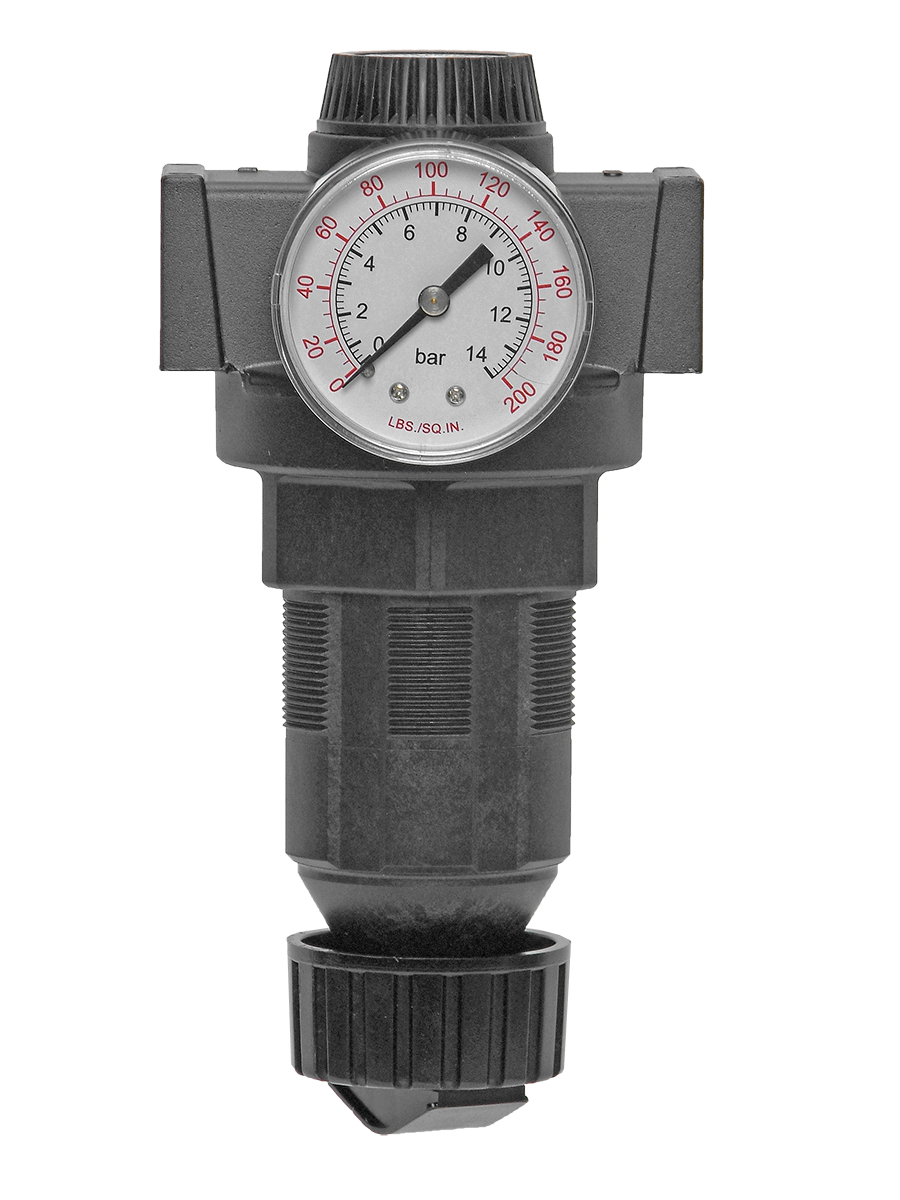

100 Series R100-4AEHGW
- Modular or In-line mounting
- Diaphragm-type design
- Self-relieving; non-relieving optional
- Pressure gauge
- Pressure adjustment locking knob
Product Information
| Port Size | 1/2" |
| Port Thread | G (BSPP) |
| Excess Pressure Release | Non-Relieving |
| Flow Options | Reverse Flow |
| Regulated Pressure Range | 0 to 175 psig (0 to 12 bar) |
| Pressure Adjustment Type | Knob |
| Pressure Gauge | Analog Gauge |
| Operating Pressure (Inlet) | Maximum 300 psig (21 bar) |
| Operating Pressure (Outlet) | Adjustable up to 175 psig (12 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Dome Material | Plastic |
| Knob Material | Acetal |
| Seal Material | Nitrile (Buna-N) |
| Weight | 2.06 lb (0.92 kg) |
+
100 Series
R100-4AEHGW
