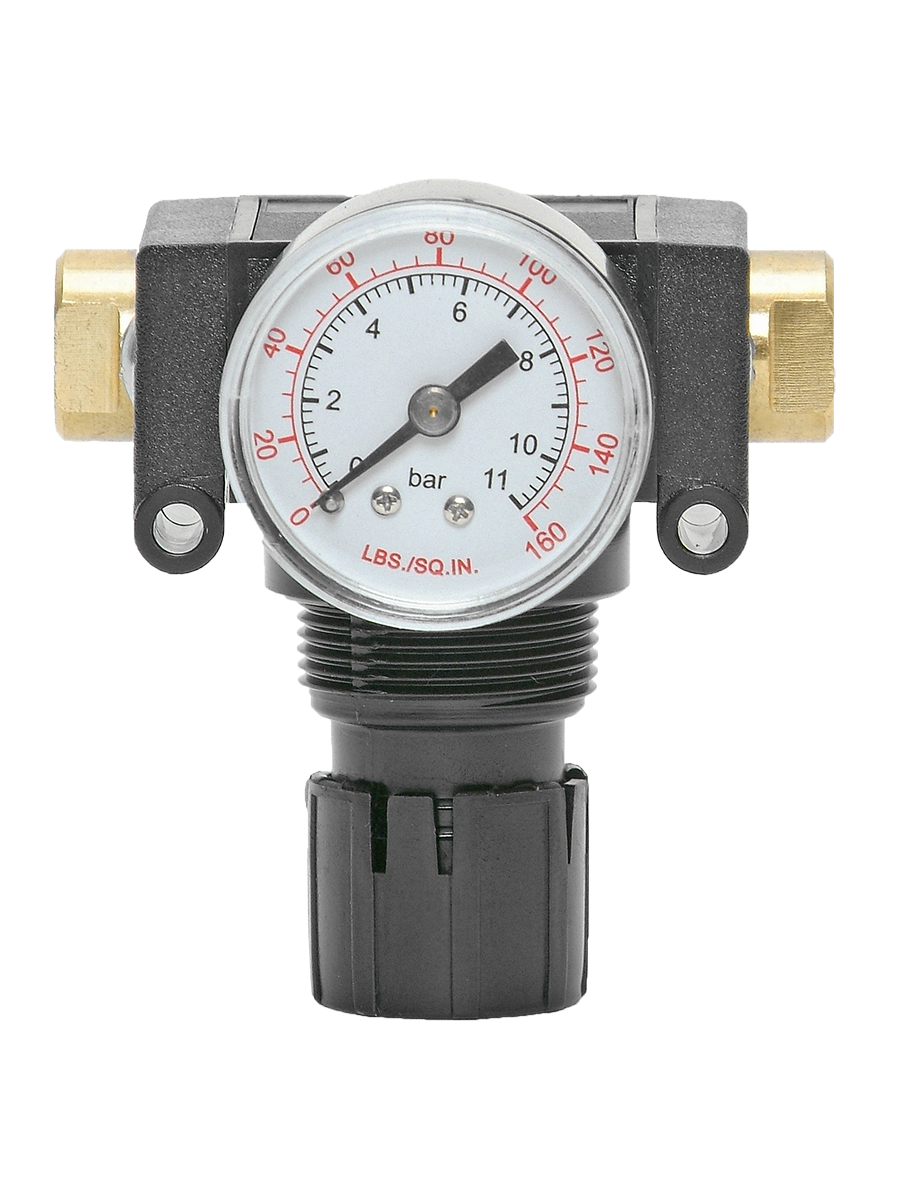

10 Series R10M-1AHVW
- Modular assembly and mounting
- Piston-type design-type
- Self-relieving; non-relieving optional
- Pressure gauge
Product Information
| Construction Design | Piston |
| Mounting | Inline/Bottom Mount |
| Port Type | Threaded Ports |
| Port Size | 1/8" |
| Port Thread | G (BSPP) |
| Excess Pressure Release | Non-Relieving |
| Pressure Gauge | Not Included |
| Gauge Pressure Range | No Gauge, Plugged Ports |
| Regulated Pressure Range | 0 to 125 psig (0 to 8.6 bar) |
| Pressure Adjustment Type | Knob |
| Operating Pressure | Maximum 150 psig (10 bar) |
| Operating Pressure (Outlet) | Adjustable up to 100 psig (7 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Nylon |
| Dome Material | Acetal |
| Knob Material | Acetal |
| Seal Material | Fluorocarbon (Viton) |
| Weight | 0.43 lb (0.19 kg) |
+
10 Series
R10M-1AHVW
