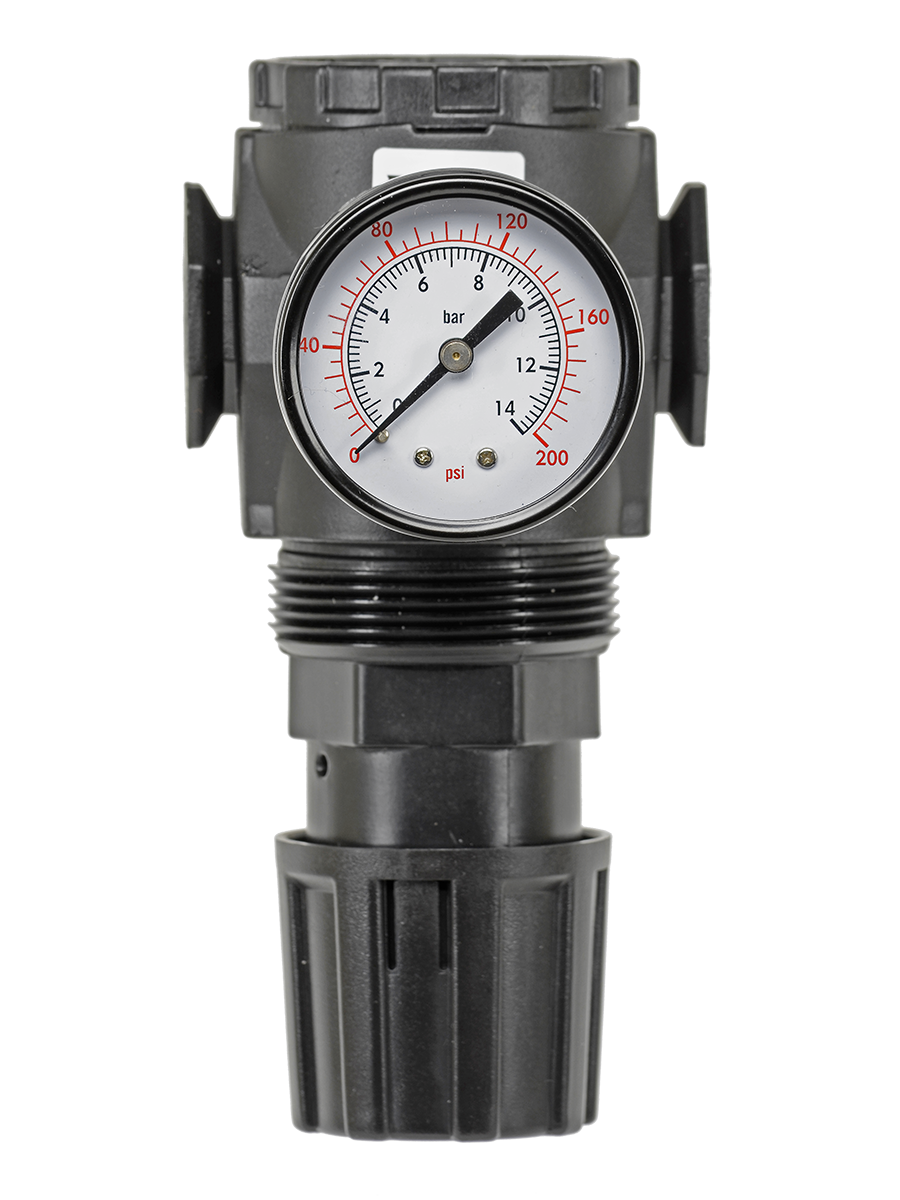

350 Series R350-3BL100G
- Modular or In-line mounting; modular mounting allows regulators to be positioned at 45º increments for ease in adjustment
- Superior pressure regulation-diaphragm regulator
- Self relieving design; large diaphragm sensing area; non-relieving optional
- Optional Pressure adjustment locking knob; tamper resistant pressure setting
- Inlet rated to 300 psig (21 bar)
- Reverse flow option
- Optional pressure gauges
Product Information
| Port Size | 3/8" |
| Port Thread | NPTF |
| Mounting | Modular/Inline |
| Excess Pressure Release | Self-Relieving |
| Pressure Adjustment Type | Locking Knob |
| Flow Options | Standard Flow |
| Pressure Gauge | Analog Gauge |
| Operating Pressure (Inlet) | Maximum 300 psig (21 bar) |
| Operating Pressure (Outlet) | Adjustable up to 250 psig (17.2 bar) |
| Regulated Pressure Range | 0 to 100 psig (0 to 6.9 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Dome Material | Nylon |
| Knob Material | Acetal |
| Seal Material | Nitrile (Buna-N) |
| Weight | 1.9 lb (0.86 kg) |
+
350 Series
R350-3BL100G
Contact Us for a 3D Model
+
350 Series
R350-3BL100G
Contact Master Pneumatic for Ordering Information
+
