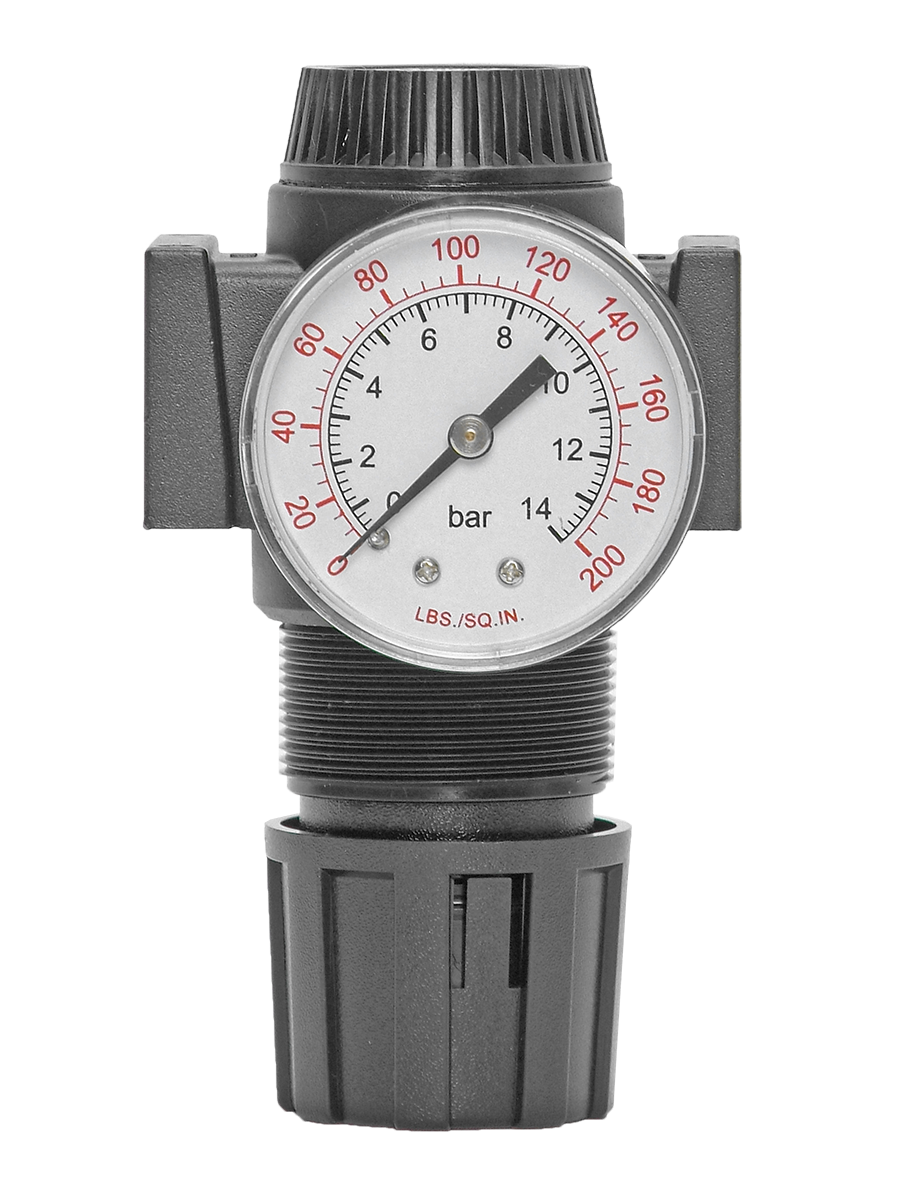

60 Series R60-3AEG
- Modular assembly and mounting.
- Piston-type design-type.
- Self-relieving; non-relieving optional.
- Pressure gauge.
Product Information
| Construction Design | Piston |
| Mounting | Modular/Inline |
| Port Size | 3/8" |
| Port Thread | NPTF |
| Excess Pressure Releast | Non-Relieving |
| Flow Options | Reverse Flow |
| Regulated Pressure Range | 0 to 100 psig (0 to 6.9 bar) |
| Pressure Gauge | Analog Gauge |
| Operating Pressure (Inlet) | Maximum 250 psig (17 bar) |
| Operating Pressure (Outlet) | Adjustable up to 150 psig (10 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Zinc |
| Dome Material | Acetal |
| Knob Material | Acetal |
| Seal Material | Nitrile (Buna-N) |
| Weight | 1.0 lb (0.46 kg) |
+
60 Series
R60-3AEG
Contact Us for a 3D Model
+
60 Series
R60-3AEG
Contact Master Pneumatic for Ordering Information
+
