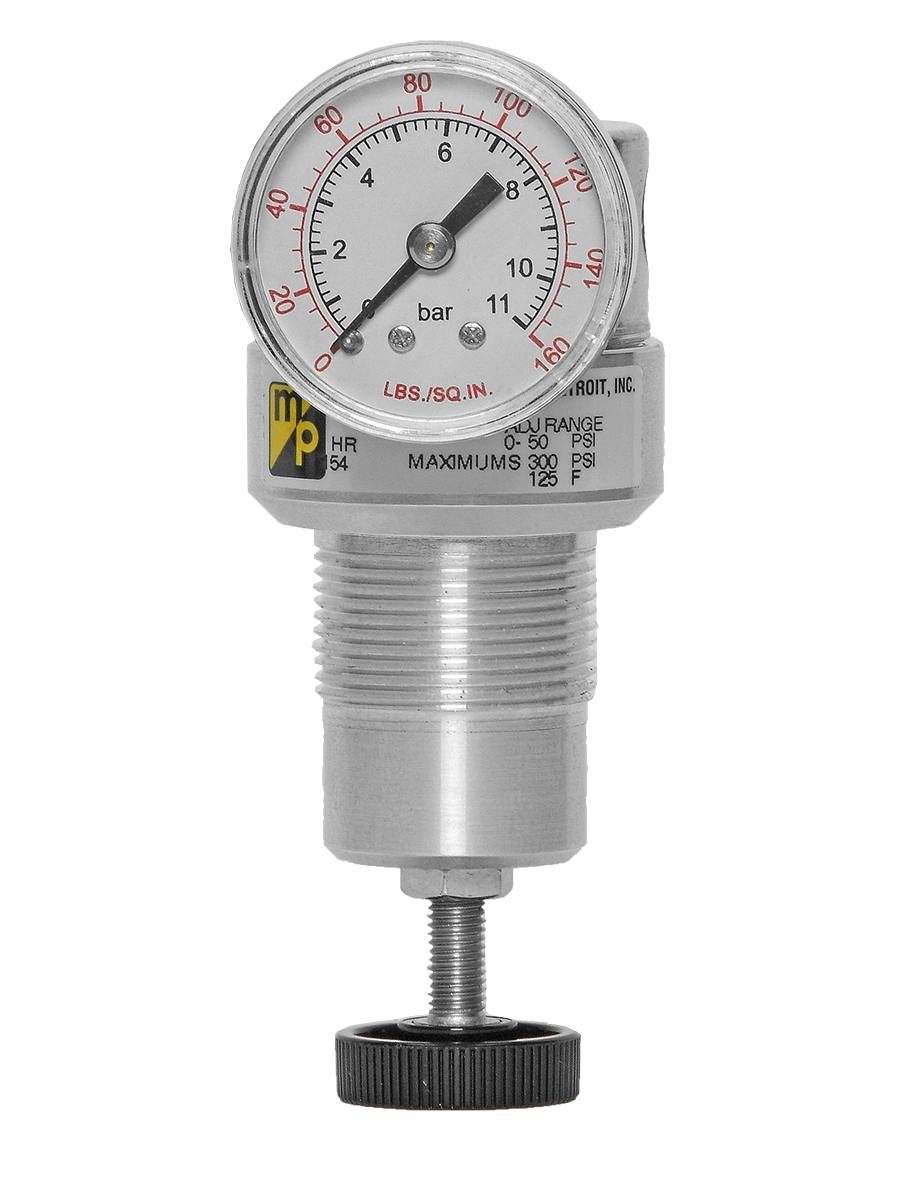

57 Series R57M-1HVGW
- In-line mounting.
- Diaphragm-type design.
- Self-relieving; non-relieving optional.
- Pressure gauge.
- Repeatability ± 0.25 psig (0.017 bar)
Product Information
| Construction Design | Diaphragm |
| Mounting | Modular/Inline |
| Port Size | 1/8" |
| Port Thread | G (BSPP) |
| Excess Pressure Release | Self-Relieving |
| Regulated Pressure Range | 0 to 60 psig (0 to 4.1 bar) |
| Pressure Gauge | Analog Gauge |
| Operating Pressure (Inlet) | Maximum 300 psig (21 bar) |
| Operating Pressure (Outlet) | Adjustable up to 60 psig (4.1 bar) |
| Ambient/Medium Temperature | -4° to 125°F (-20° to 52°C) |
| Medium Temperature Caution | For temperatures below 35°F (2°C) air must be free of water vapor; compressed air to ISO 8573-1:2010 [-:3:-]. |
| Fluid Medium | Compressed Air |
| Body Material | Aluminum |
| Dome Material | Aluminum |
| Knob Material | Glass-Filled Nylon and Acetal |
| Seal Material | Fluorocarbon (Viton) |
| Weight | 0.38 lb (0.16 kg) |
+
57 Series
R57M-1HVGW
Contact Us for a 3D Model
+
57 Series
R57M-1HVGW
Contact Master Pneumatic for Ordering Information
+
